NivoGuide® - NG 8200 Radar Sensors

Brand: UWT GmbH
Request Information
Application Area

The guided radar sensor NivoGuide® 8200 measures the level of liquids or oils under most extreme process conditions.

The extremely robust sensor construction, resistant materials as well as a special reference line extend the field of application of the TDR sensors by high-pressure, high-temperature and saturated steam applications.

Thus, temperature ranges from -196 °C ... 450 °C and process pressures up to 400 bar can be covered.
Features
  • Simple, menu-driven commissioning and diagnostics with operating module and display
  • Precise measurement results even in extreme steam applications due to additional reference line
  • High-quality graphite and ceramic materials ensure maintenance-free operation even under most extreme conditions
Application Area

The guided radar sensor NivoGuide® 8200 measures the level of liquids or oils under most extreme process conditions.

The extremely robust sensor construction, resistant materials as well as a special reference line extend the field of application of the TDR sensors by high-pressure, high-temperature and saturated steam applications.

Thus, temperature ranges from -196 °C ... 450 °C and process pressures up to 400 bar can be covered.
Features
  • Simple, menu-driven commissioning and diagnostics with operating module and display
  • Precise measurement results even in extreme steam applications due to additional reference line
  • High-quality graphite and ceramic materials ensure maintenance-free operation even under most extreme conditions
Close
Close

Specifications

Brand

Measurement Pprinciple

  • Guided Radar (TDR)

Measuring Task

  • Continuous Level Measurement
  • Interface Level Measurement

Version

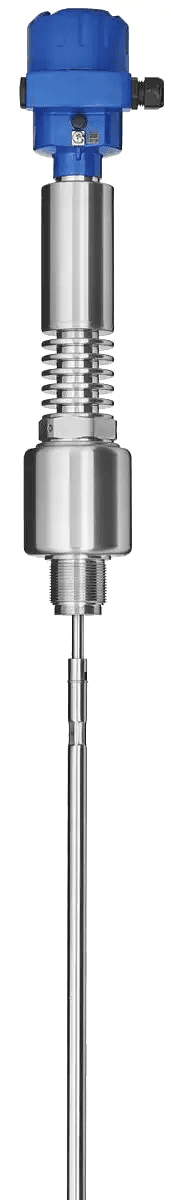

  • Rod Version

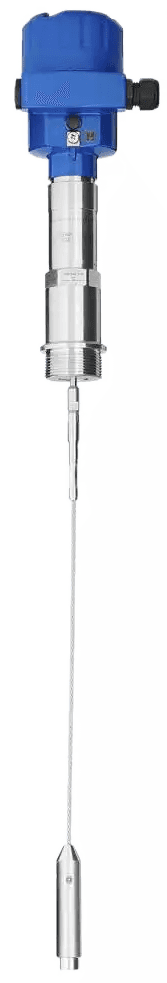

  • Rope Version

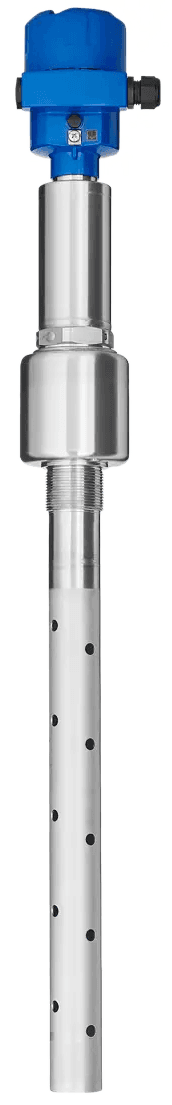

  • Coaxial Version
  • Version with Steam Compensation

Medium

  • Liquids

Mounting Position

  • Top
  • In a Standpipe
  • In a Bypass
  • On a Socket

Ambient Temperature

  • -40°C … +80°C (-40 … +176°F)

Process Temperature

  • -196°C … +450°C (-321 … +842°F)

Process Pressure

  • -1 bar … +400 bar (-14.5 psi … +5800 psi)

Minimum Sensitivity

  • DK ≥ 1.4

Housing Type

  • Flameproof
  • Flameproof Double Chamber

Housing Material

  • Aluminium
  • Stainless Steel 1.4404 (316L)

Housing Protection Rating

  • IP68, Type 4

Threaded Connection

  • ≥ G ¾"
  • ≥ NPT ¾"
  • ≥ M30 x 1.5

Flange Connection

  • ≥ DN25 / ≥ 1"

Hygienic Fittings

  • Triclamp Adapter

Wetted Materials

  • Stainless Steel 1.4404 (316L)
  • Stainless Steel 1.4401 (316)
  • FFKM
  • Graphite
  • PEEK
  • Ceramic

Mechanical Load

  • Rod (Ø 8 mm): 4 Nm
  • Rod (Ø 16 mm): 30 Nm
  • Rope (Ø 2 mm): 1.5 kN
  • Rope (Ø 4 mm): 2.5 kN
  • Coax (Ø 21.3 mm): 60 Nm
  • Coax (Ø 42.2 mm): 300 Nm

Accuracy

  • ±2 mm (±0.07")

Minimum Immersion Length

  • Rod: 300 mm (11.8")
  • Coax: 300 mm (11.8")
  • Rope: 500 mm (19.7")

Maximum Immersion Length

  • Coax: 6 m (19.82')
  • Rod: 6 m (19.82')
  • Rope: 60 m (196')

Power Supply

  • 9.6...35 VDC

Signal Output

  • 4...20 mA/ HART (2-wire)

Approvals

  • CE, General purpose, ATEX, IEC-Ex, INMETRO, TR-CU, FM

Explosion Protection

  • Dust Ignition-proof (Ex t)
  • Non-Incendive
  • Intrinsic Safe (Ex i)
  • Explosion Proof/ Flame Proof (Ex d)

SIL Qualification

  • SIL 2/3

Further Approvals

  • Steam Boiler Approval (EN 12952-11:2007)

User Interface

  • LCD Display with Push Buttons
  • PACTware (DTM)
  • HART Modem

Optical Indicator

  • Display

Adjustment Possibility

  • Self Diagnostics
  • Menu-Driven Quick Start
  • Echo Analysis
  • Volume Table
