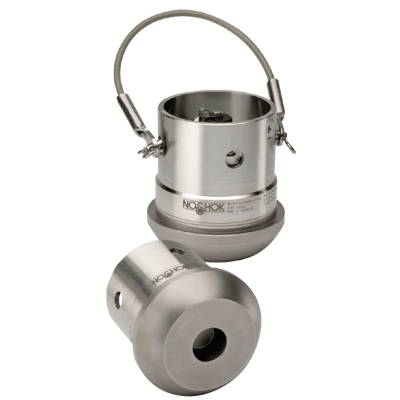

628 Series Pressure Transmitter

Brand: Noshok, Inc
Request Information
Features
  • Ranges from 0 to 5,000 psig (0 to 34.47 MPa, 0 to 344.7 bar) through 0 to 20,000 psig (0 to 137.9 MPa, 0 to 1,379 bar)
  • Current Output
  • Inconel® X-750 Wetted Parts
  • Canadian Standards Association Approved
  • NACE MR0175/ISO 15156 Compliant
  • Every Sensor Comes with a Certificate of Calibration
  • Certifications Pending:
    •  Factory Mutual
    •  ATEX
    • CE
show more
Features
  • Ranges from 0 to 5,000 psig (0 to 34.47 MPa, 0 to 344.7 bar) through 0 to 20,000 psig (0 to 137.9 MPa, 0 to 1,379 bar)
  • Current Output
  • Inconel® X-750 Wetted Parts
  • Canadian Standards Association Approved
  • NACE MR0175/ISO 15156 Compliant
  • Every Sensor Comes with a Certificate of Calibration
  • Certifications Pending:
    •  Factory Mutual
    •  ATEX
    • CE
Close
Close

Specifications

Brand

Accuracy

  • ± 0.25 % of Full Scale BFSL

Ambient Temperature Range

  • -40° to 85° C (-40° to 185° F)

Applications

  • Acidizing
  • Choke & Kill Manifold
  • Fracturing & Cementing
  • Mud Logging & Mud Pumps
  • Oil Field & Offshore
  • Wellhead Monitoring

Approvals & Certifications

  • ATEX Approval Pending
  • CE Approval Pending
  • CSA
  • FM Approval Pending

Burst Pressure

  • 3 times Full Scale (22,500 psi, Max.

Compensated Temperature

  • 5° to 60° C (40° to 140° F)

Electrical Connectors

  • 4-Pin (MIL-C-5015)
  • 6-Pin Bendix (MIL-C-26482)

Electrical Protection

  • Overvoltage
  • Reverse Polarity
  • Short Circuit

Electromagnetic Rating

  • ESD Protection
  • RFI/EMI

Enclosure, Body Material

  • 316 Stainless Steel

Environmental Protection

  • IP67

Load Limit

  • ≤ (VPower-10) / 0.020 Amp

NACE & NIST

  • NACE MR-0175, ISO 15156 Compliant

Options

  • Carrying Handle
  • Electrical Connector Cage

Output

  • 4-20 mA, 2-Wire

Power Requirement

  • 10-28 Vdc

Pressure Range

  • bar: 0 to 1,379
  • kPa: 0 to 137,900
  • psig: 0 to 20,000

Pressure Type

  • Gauge

Process Connection - Other

  • 2” Wing Union 1502

Process Temperature

  • -40° to 85° C (-40° to 185° F)

Proof Pressure

  • 1.5 x Full Scale (22,500 psi, Max.

Response Time

  • < 2 milliseconds

Shock

  • 100 G as Per IEC 60068-2-27

Span & Zero Effect

  • ± 0.01 % of Full Scale/°F

Stability

  • ≤ ± 0.2 % of Full Scale for 1-Year, Non-Accumulating

Storage Temperature

  • -40° to 85° C (-40° to 185° F)

Vibration

  • 15 G as Per IEC 60068-2-6

Wetted Materials

  • Inconel X-750 (Measuring Element, Connection)
Close

Applications

  • Acidizing
  • Choke & Kill Manifold
  • Fracturing & Cementing
  • Mud Logging & Mud Pumps
  • Oil Field & Offshore
  • Wellhead Measurement
