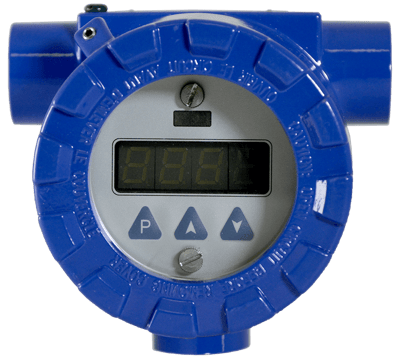

8080MN Model Digital Process Indicator

Brand: International Metal Engineering (IME)
Request Information
IME Model 8080MN Digital Process Indicator allows the process variable from any transmitter to be monitored in the field. Since the unit can also provide 24V DC to the transmitter, it can be used to power any 2-wire transmitter in the field.

IME Model 8080MN Indicators are designed for use in process industries where vibration, inclement weather, and corrosive atmospheres prevail. The electronics are enclosed in a copper-free epoxy-coated aluminum housing, and for more aggressive environments, a SS316 housing is optionally available. The housings meet the requirements of NEMA 4X & IP68 and are also certified explosion-proof by FM/CSA/ATEX/IECEx.

The Model 8080MN has a 4-digit display and can be configured to read from - 999 to 9999 with a 4~20 mA input signal. The decimal point location, engineering units, alarm settings, etc. can be adjusted using the membrane key on the front panel. The Model 8080MN can be wall-mounted or mounted on a 2" pipe. for mounting the unit on a wall or 2" pipe, a wide choice of stainless steel mounting brackets is also available.

  • 4-Digit LED Indicator
  • 2 Conduit Connections
    • 3/4" NPT
    • 1/2" NPT
    • M20 x 1.5P
  • 1 Instrument Connection
    • M16 x 2P
    • 1/2" NPT
    • 3/4" NPT M20 x 1.5P
  • Temperature Range: -40° to +60°C (-40° to +140°F)
  • Materials of Construction
    • Enclosure: Epoxy Coated Aluminum or 316 Stainless Steel
    • O-Rings: Buna-N (Nitrile)
    • Mounting Bracket: 316 Stainless Steel
  • Environmental Rating: NEMA 4X, IP68
  • FM, CSA, ATEX, IECEx Explosion-Proof
IME Model 8080MN Digital Process Indicator allows the process variable from any transmitter to be monitored in the field. Since the unit can also provide 24V DC to the transmitter, it can be used to power any 2-wire transmitter in the field.

IME Model 8080MN Indicators are designed for use in process industries where vibration, inclement weather, and corrosive atmospheres prevail. The electronics are enclosed in a copper-free epoxy-coated aluminum housing, and for more aggressive environments, a SS316 housing is optionally available. The housings meet the requirements of NEMA 4X & IP68 and are also certified explosion-proof by FM/CSA/ATEX/IECEx.

The Model 8080MN has a 4-digit display and can be configured to read from - 999 to 9999 with a 4~20 mA input signal. The decimal point location, engineering units, alarm settings, etc. can be adjusted using the membrane key on the front panel. The Model 8080MN can be wall-mounted or mounted on a 2" pipe. for mounting the unit on a wall or 2" pipe, a wide choice of stainless steel mounting brackets is also available.

  • 4-Digit LED Indicator
  • 2 Conduit Connections
    • 3/4" NPT
    • 1/2" NPT
    • M20 x 1.5P
  • 1 Instrument Connection
    • M16 x 2P
    • 1/2" NPT
    • 3/4" NPT M20 x 1.5P
  • Temperature Range: -40° to +60°C (-40° to +140°F)
  • Materials of Construction
    • Enclosure: Epoxy Coated Aluminum or 316 Stainless Steel
    • O-Rings: Buna-N (Nitrile)
    • Mounting Bracket: 316 Stainless Steel
  • Environmental Rating: NEMA 4X, IP68
  • FM, CSA, ATEX, IECEx Explosion-Proof
Close
Close

Specifications

Brand

Accuracy

  • ± 0.1 % of Calibrated Range ± 1-Digit

Approvals & Certifications

  • ATEX
  • CSA
  • FM
  • IEC Ex

Conduit Connection

  • 1/2” NPT
  • 3/4” NPT
  • M20 x 1.5

Digital Stability

  • 0.1 % of Calibrated Range ± 1-Digit over 6 Months

Display

  • 4-Digit LED

Enclosure, Body Material

  • 316 Stainless Steel
  • Aluminum, Epoxy Coated

Environmental Protection

  • IP68
  • NEMA 4X

Input

  • 4-20 mA

Instrument Connection

  • 1/2” NPT
  • 3/4” NPT
  • M16 x 2P
  • M20 x 1.5P

Mounting

  • 2” U-Bolt Fasteners for Pipe Mounting
  • 316 Stainless Steel Mounting Kit, for Wall or 2” Pipe
  • 316 Stainless Steel Wall Mounting Bracket

Response Time

  • Typically 200 milliseconds

Supply Voltage

  • Loop Powered

Temperature Range

  • -40° to 60° C (-40° to 140° F)
