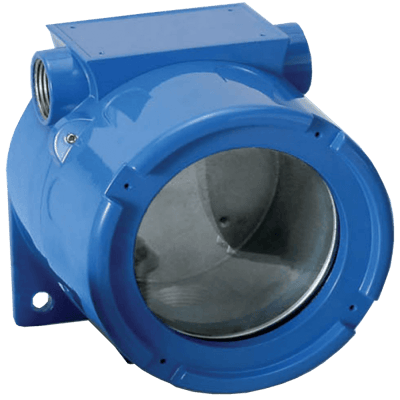

Model 8092 Instrument Enclosure

Brand: International Metal Engineering (IME)
Request Information
IME Model 8092 Series Instrument Enclosures are designed to accommodate circuit boards and devices having a maximum diameter of 92 mm (3.6").

Specifically designed for Explosion-Proof applications, the housing is available in either an epoxy painted Copper-Free Aluminum version or investment casted SS316 to withstand applications where aggressive atmospheres prevail.

The housing can be ordered with either a tempered glass cover or blind cover. There is a wide choice of conduit and instrument entries.
Features
  • Explosion-Proof Certified
  • NEMA 4X and IP66/67 Construction
  • Choice of 316 Stainless Steel and Copper Free Aluminum
  • Choice of Tempered Glass Cover or Blind Cover
  • Wide Selection of Conduit Sizes
  • Option for a Customized Stainless Steel Nameplates
IME Model 8092 Series Instrument Enclosures are designed to accommodate circuit boards and devices having a maximum diameter of 92 mm (3.6").

Specifically designed for Explosion-Proof applications, the housing is available in either an epoxy painted Copper-Free Aluminum version or investment casted SS316 to withstand applications where aggressive atmospheres prevail.

The housing can be ordered with either a tempered glass cover or blind cover. There is a wide choice of conduit and instrument entries.
Features
  • Explosion-Proof Certified
  • NEMA 4X and IP66/67 Construction
  • Choice of 316 Stainless Steel and Copper Free Aluminum
  • Choice of Tempered Glass Cover or Blind Cover
  • Wide Selection of Conduit Sizes
  • Option for a Customized Stainless Steel Nameplates
Close
Close

Specifications

Brand

Approvals & Certifications

  • ATEX II 2 GD Ex d IIC Ex TD A21 IP66 Ta = -40° to 85° C
  • FM (C,US) - Class I, Div. 1, Groups B, C, D, Class II, Div. 1, Groups E, F, G, Class III
  • IECEx d II C Ex TD A21 IP66 Ta = -40° to 85° C

BSP Connection

  • 1/2” BSP Female

Conduit Connection

  • 1/2” NPT Female
  • 3/4” NPT Female
  • M20 x 1.5 Female
  • M25 x 1.5 Female

Cover Material

  • Blind
  • Tempered Glass

Enclosure Finish

  • Electro-Polished for Stainless Steel
  • Epoxy Painted for Aluminum

Enclosure, Body Material

  • 316 Stainless Steel
  • Die Cast Aluminum

Environmental Protection

  • IP66
  • IP67
  • NEMA 4X

Materials of Construction

  • 316 Stainless Steel
  • Copper-Free Aluminum

Metric Connection

  • M20 x 1.5 Female
  • M25 x 1.5 Female
  • M27 x 1.5 Female

Name Plate, Tag Material

  • Stainless Steel

NPT Connection

  • 1” NPT Female
  • 1/2” NPT Female
  • 3/4” NPT Female

O-Ring Material

  • Buna-N
