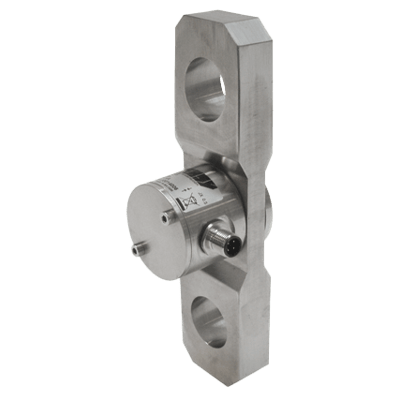

5205 Tension Load Cell

Brand: Sensy - Sensors & Synergy S.A.
Request Information
Tension force transducer.
Features
  • Sturdy design
  • Material: nickel plated steel (also available in stainless steel)
  • Protection IP 66
  • Cable length: 3 to 6 meters
  • Available options:
    • ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
    • Amplified output signal (0-10 V, 4 to 20 mA)
    • Digital output signal (RS-232C, RS-485, USB)
    • Hoist version
show more
Tension force transducer.
Features
  • Sturdy design
  • Material: nickel plated steel (also available in stainless steel)
  • Protection IP 66
  • Cable length: 3 to 6 meters
  • Available options:
    • ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
    • Amplified output signal (0-10 V, 4 to 20 mA)
    • Digital output signal (RS-232C, RS-485, USB)
    • Hoist version
Close

Specifications

Brand

Applications

  • Suspended Industrial Weighing
  • Tension Force Measurement

Approvals & Certifications

  • ATEX Intrinsic Safety Ex II 1 GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
  • CE

Cable Length

  • 10 to 20 feet (3 to 6 metres)

Capacity

  • 2 to 50 T

Communication

  • RS-232C, RS-485
  • USB

Enclosure, Body Material

  • Nickel-Plated Steel
  • Stainless Steel

Environmental Protection

  • IP66

Excitation Voltage

  • 10 Vdc
  • 3-12 Vdc - Nominal Range

Insulation Resistance

  • > 5,000 megaohms

Linearity

  • Error: < ± 0.5 % of Full Scale

Load

  • > 300 % of Full Scale - Breaking Load

Load Limit

  • 150 % of Full Scale

Repeatability

  • Error: < ± 0.25 % of Full Scale

Resistance

  • 352 ± 2 ohms - Input/Output Resistance

Sensitivity

  • ± 1.5 mV/V

Service Temperature

  • -30° to 70° C (-22° to 158° F)

Storage Temperature

  • -50° to 85° C (-58° to 185° F)

Temperature Coefficient

  • < ± 0.1 % of Full Scale/10° C (18° F)

Zero Balance

  • ± 0.02 mV/V
