Description
cULus Non-Hazardous Area Approved for Canada & USA

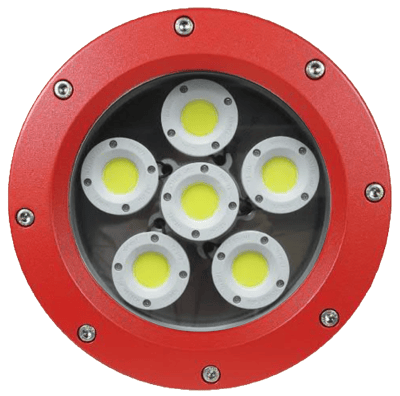

L1217, 100°C High Heat Resistant & High Humidity LED Light, (COB) 120 Watt
- cULus Approvals:
- UL 844
- UL 1598
- UL 8750
- CSA: C22.2 No.250.0
- Max Ambient Temperature:
- +65°C ~ +100°C (+149°F ~ +212°F)
- Degree of Protection:
- IP67 / NEMA 6
N
Specifications
Specifications
Brand
Standards
- UL 844
- UL 1598
- UL 8750
- CSA C22.2 No.250.0
Max Ambient Operating Temperature
- +65°C ~ +100°C (+149°F ~ +212°F)
Watts
- 120W
Rated Voltage
- 120V / 220V / 277V AC
Frequency
- 50 / 60 Hz
Amps
- 120V: (1.00A), 220V: (0.55A), 277V: (0.43A)
Power Factor
- cos≧0.9
Color of LED Light (C.C.T.)
- 5000K (Cool White)
CRI
- ≥ 70
Lumen (± 10%)
- 12,600 lm
Lumens per Watt (±10%)
- 105 lm/w
Beam Angle
- X-110° / Y-110°
Degree of Protection
- IP67 / NEMA 6
Material
- Enclosure: Aluminum Alloy
- Lens: Tempered Clear Glass
- Mounting Bracket: 304 Stainless
Cable Gland
- Stainless Steel
Entrance Thread
- qty 4 x M25
Electrical Cable
- 3 Ft (1 Meter) Silicone Rubber Cable
- cUR, Type AWM 4476, 300V, 200°C, 0.75mm2 x 3C (18 AWG) FT1
LED Service Life
- 60,6000 Hrs
Warranty
- 1 year warranty without warranting lumen depreciation
Applications
Applications
● Pulp & Paper (Cooking and Drying Area)
● Glass Factory (Processing Area)
● Metal Forging or Metal Recycling Plant (Heating or Forging Area)
● Oil & Gas (Furnace Towers or Compressor Rooms)
● Garbage Processing Plant (Burning Area)
● Coal Power Plant (Burning Area)
● Gas Turbine Power Plant (Gas Turbine Area)
● Painting Factory (Drying Area)
● Winery (Distillation Chamber)
● Textile (Dyeing and Finishing Area)
● Food Process (Heating, Cooking or Baking Area)
