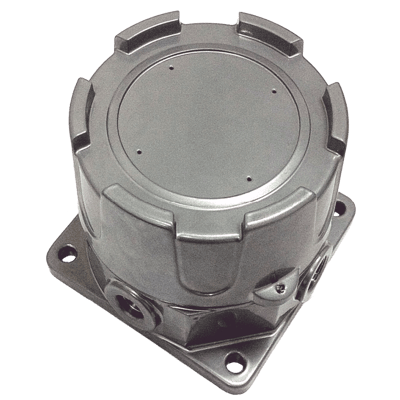

Model 5092 Terminal Enclosure

Brand: International Metal Engineering (IME)
Request Information
ME Model 5092 Terminal Box accommodates 10 Phoenix Terminals, having a maximum diameter of 3.6" (92 mm). It is available with a choice of solid or tempered glass cover in either copper free Aluminum or SS316.
Features
  • Explosion-Proof certified
  • Equipment certified
  • Choice of 316 stainless steel and copper-free aluminum
  • Choice of tempered glass cover or blind cover
  • Wide selection of conduit sizes
  • Option for a customized stainless steel nameplate
ME Model 5092 Terminal Box accommodates 10 Phoenix Terminals, having a maximum diameter of 3.6" (92 mm). It is available with a choice of solid or tempered glass cover in either copper free Aluminum or SS316.
Features
  • Explosion-Proof certified
  • Equipment certified
  • Choice of 316 stainless steel and copper-free aluminum
  • Choice of tempered glass cover or blind cover
  • Wide selection of conduit sizes
  • Option for a customized stainless steel nameplate
Close
Close

Specifications

Brand

Approvals & Certifications

  • ATEX II 2 GD Ex d IIC GB Ex Tb dB IIIC IP68 Ta = -40° to 85° C (-40° to 185° F)
  • IECEx d IIC GB Ex Tb dB IIIC IP68 Ta = -40° to 85° C (-40° to 185° F)

Cover Material

  • Cross Section with Blind Cover
  • Cross Section with Glass Cover

Electrical Connectors

  • 1/2” BSP
  • 1/2” NPT
  • 3/4” NPT
  • M20 x 1.5 or M20 x 1.5P
  • M25 x 1.5P

Enclosure Finish

  • Electro-Polished for Stainless Steel
  • Epoxy Painted for Aluminum

Enclosure, Body Material

  • 316 Stainless Steel
  • Copper-Free Aluminum

O-Ring Material

  • Buna-N
