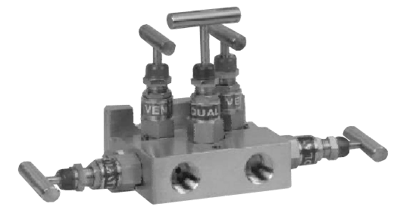

Model 505DM 5-Valve Manifold

Brand: International Metal Engineering (IME)
Request Information
Model 505 single flanged 5 valve manifold, allows the pressure transmitter to be directly mounted, eliminating the need for additional piping, valves and fittings.
Features
  • Pressures psi: 0 to 6,000 (kPa: 0 to 41,369, bar: 0 to 413.7)
  • Standard 2.13" center to center inlet / outlet
  • 3/16" bore
  • Wide choice of materials and options
Model 505 single flanged 5 valve manifold, allows the pressure transmitter to be directly mounted, eliminating the need for additional piping, valves and fittings.
Features
  • Pressures psi: 0 to 6,000 (kPa: 0 to 41,369, bar: 0 to 413.7)
  • Standard 2.13" center to center inlet / outlet
  • 3/16" bore
  • Wide choice of materials and options
Close
Close

Specifications

Brand

Bore Size

  • 0.18” (4.76 mm)

Drain, Vent Valves & Plug

  • 1/4” NPT Female

Enclosure, Body Material

  • 316 Stainless Steel
  • Carbon Steel
  • Hastelloy C
  • Monel 400

Gland Packing Material

  • Graphoil (Temperatures Above 180° C)
  • PTFE

Mounting

  • 2” NB Stanchion Pipe Stand
  • Mounting Bracket with 'U' Bolts
  • Wall Mounting

NPT Inlet

  • 1/2” NPT Female
  • 1/4” NPT Female
  • 3/8” NPT Female

Packing Material

  • Grafoil
  • Teflon

Pressure Range

  • psi: 0 to 6,000 (kPa: 0 to 41,370, bar: 0 to 413.7)

Proof Pressure

  • Test Pressure - psi: 580.2 (kPa: 4,000, bar: 40) at 25° C Room Temperature for Pneumatic (Seat)
  • Test Pressure - psi: 6,019 (kPa: 41,500, bar: 415) at 25° C Room Temperature for Hydrostatic (Seat)
  • Test Pressure - psi: 8,992 (kPa: 62,000, bar: 620) at 25° C Room Temperature for Hydrostatic (Body)

Valves

  • Five Valve Manifold
