Description
This series of thermometers has been designed as an addition to the standard range of thermometers in order to meet the special requirements of the food, bio and pharmaceutical industries as well as in the paints and varnishes industry.

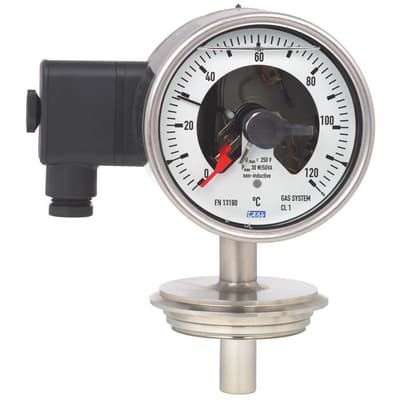

The model 74 gas-actuated thermometer is ideally suited to fulfil the high standard requirements of sanitary applications.
Based on a third party verification, the thermometer complies with the 3-A standard and is marked by us accordingly.
Features- Dead-space free, hygienic version.
- Aseptic process connections.
- Material and surface finish quality in accordance with pharmaceutical industry directives and standards.
- Gauges with inductive contact for use in hazardous areas with ATEX approval.
Specifications
Specifications
Certifications & Approvals
- ATEX
- CE
- 3-A
- CRN
- EAC
Environmental Protection
- IP65
Ambient Temperature
- -20° to 60° C
Process Connection
- Tri-Clamp, DN 1-1/2”, PN 40 or DN 2”, PN 40
- Grooved Union Nut DIN 11851, DN 40, PN 40 or DN 50, PN 25
- NEUMO BioControl®
- For pipes DN 40 to DN 125 and 1-1/2” to 4”, PN 25
- VARIVENT® Connection
Connection Location
- Lower Mount
- Back Mount
Case Material
- Stainless Steel 1.4301
Window Material
- Laminated Safety Glass
Dial Material
- Aluminium, White, Black Lettering
Measurement Range
- -20 to 100° C
