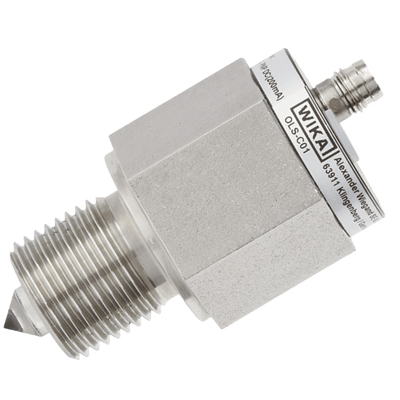

Optoelectronic Level Switch - OLS-C01

Brand: WIKA Alexander Wiegand SE & Co. KG
Request Information
The model OLS-C01 optoelectronic level switch is used for monitoring the level of liquids. The optoelectronic sensor consists of an infrared LED and a light receptor.

The light from the LED is directed at a prism which forms the tip of the sensor. So long as the tip is not immersed in liquid, the light is reflected within the prism to the receiver.
Features
  • Compact design, no moving components.
  • Mounting position as required.
  • Accuracy ±2 mm.
  • Visual indication of the switching status.
  • Choice of electrical connections: PUR, PVC cable or circular connector M8.
The model OLS-C01 optoelectronic level switch is used for monitoring the level of liquids. The optoelectronic sensor consists of an infrared LED and a light receptor.

The light from the LED is directed at a prism which forms the tip of the sensor. So long as the tip is not immersed in liquid, the light is reflected within the prism to the receiver.
Features
  • Compact design, no moving components.
  • Mounting position as required.
  • Accuracy ±2 mm.
  • Visual indication of the switching status.
  • Choice of electrical connections: PUR, PVC cable or circular connector M8.
Close

Specifications

Brand

Measurement Accuracy

  • ≤ ± 2 mm

Minimum Distance from the Glass Tip to An Opposite Surface

  • ≥ 20 mm with Electropolished surface
  • ≥ 10 mm

Mounting Position

  • as Required

Visual Indication of the Switching Status

  • 1 LED

Process Connection G

  • G 3/8, G 1/2 or M12 x 1 (Male)

Responsiveness

  • Option: Adjustable responsiveness (Trimmer) for other Liquids and foaming media
  • Preset for the Detection of Aqueous Media and Oils

Medium Temperature

  • -30° to +100° C [-22 … +212° F]

Ambient Temperature

  • -25 … +70° C [-13 … +158° F]

Operating Pressure

  • 0 to 25 bar [0 to 2.5 MPa, 0 to 363 psi]

Materials

  • Stainless Steel 316Ti
  • Stainless Steel 303
  • (Option: Fixed with Epoxy Resin)
  • Borosilicate Glass, fixed with Silicone adhesive

Power Supply

  • DC 12 ... 32 V

Maximum Current Supply

  • 40 mA

Electrical Connection

  • Circular Connector:  M8 x 1 (3-Pin)
  • Cable end: Cut to length
  • Diameter: 3 x 0.25 mm²
  • Cable length freely definable

Output Signal

  • PNP transistor, Protected Against Reverse Polarity, 200 mA switching Current

Switching Function

  • Normally Open (Closed in medium) or Normally Closed (Open in medium)

Ingress Protection

  • IP65

Number of Switch Points

  • 1

Response Time

  • 0.5 sec
Close

Applications

  • Machine tools
  • Hydraulics
  • Plant construction and machine building
  • Pump technology
  • For liquids such as oils, water, distilled water, aqueous media
