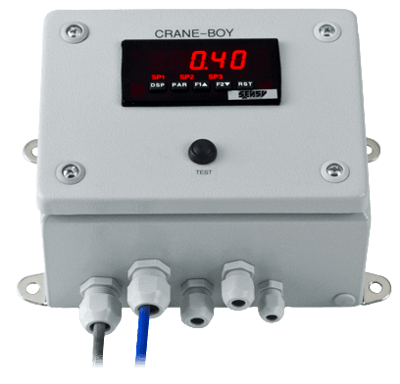

CRANE-BOY/CRANE-BOYP Load Limition Electronics

Brand: Sensy - Sensors & Synergy S.A.
Request Information
Load limitation with 3 setpoints and display.
Features
  • Easy and intuitive calibration
  • Display of hoisted load and input signal
  • Internal monitoring system of the integrity of the load cell and the load limitation electronic (positive safety)
  • TEST button on front cover
  • Options:
    • 4(0) to 20 mA or 0-10 V Analog output
    • RS232, RS485, USB or fieldbus capabilities
    • NEMA 4X / IP 65
    • Power supply: 48 Vac (only for 85-230 Vac version)
    • Also available without industrial metallic housing (see INDI-BOY products)
Load limitation with 3 setpoints and display.
Features
  • Easy and intuitive calibration
  • Display of hoisted load and input signal
  • Internal monitoring system of the integrity of the load cell and the load limitation electronic (positive safety)
  • TEST button on front cover
  • Options:
    • 4(0) to 20 mA or 0-10 V Analog output
    • RS232, RS485, USB or fieldbus capabilities
    • NEMA 4X / IP 65
    • Power supply: 48 Vac (only for 85-230 Vac version)
    • Also available without industrial metallic housing (see INDI-BOY products)
Close
Close

Specifications

Brand

Accuracy

  • 0.1 % of Full Scale

Applications

  • Load Limitation on Overhead Cranes, Container Cranes & Gantry Cranes

Approvals & Certifications

  • CE

Communication

  • FOUNDATION Fieldbus
  • RS-232
  • RS-485
  • USB

Display

  • 5-Digits (14.2 mm)

Environmental Protection

  • IP54
  • IP65
  • NEMA 4X

Input

  • ± 24 mV
  • 0 to 200 mA
  • 4-20 mA

Power Supply

  • 11-36 Vdc (11 W)
  • 24 Vac (15 VA)
  • 85-250 Vac (15 VA)

Relay Output

  • 3 A (250 Vac or 30 Vdc)
  • 3 Relays

Sensor Excitation

  • 10 Vdc at 125 mA - Max.
  • 24 Vdc ± 5 % at 50 mA - Max.

Service Temperature

  • 0° to 50° C (32° to 122° F)

Storage Temperature

  • -40° to 60° C (-40° to 140° F)
