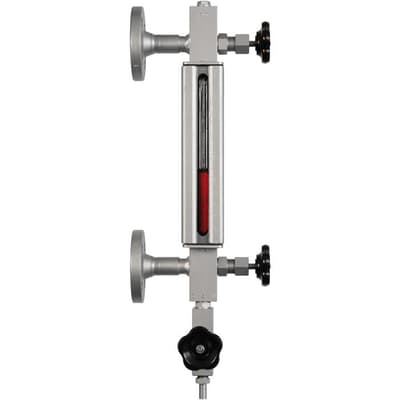

Glass Gauge - LGG

Brand: WIKA Alexander Wiegand SE & Co. KG
Request Information
The main element of the glass level gauge is the gauge body. Incorporated into this gauge body are the liquid channel (if necessary the heating channel) and the seating faces for the chambered seals and sight glasses.

Onto the gauge body are mounted, or are already integrated, the valve heads and process connections. Drain or vent are also possible.
Features
  • Process- and system-specific production.
  • Operating limits:- Operating temperature: -196 ... +374 °C,- Operating pressure: Vacuum to 250 bar.
  • Wide variety of different process connections and materials.
  • Illumination optional.
  • Heating and/or insulation optional.
The main element of the glass level gauge is the gauge body. Incorporated into this gauge body are the liquid channel (if necessary the heating channel) and the seating faces for the chambered seals and sight glasses.

Onto the gauge body are mounted, or are already integrated, the valve heads and process connections. Drain or vent are also possible.
Features
  • Process- and system-specific production.
  • Operating limits:- Operating temperature: -196 ... +374 °C,- Operating pressure: Vacuum to 250 bar.
  • Wide variety of different process connections and materials.
  • Illumination optional.
  • Heating and/or insulation optional.
Close

Specifications

Brand

Operating Temperature

  • -196° to 374° C

Operating Pressure

  • Vacuum to 250 bar

Body Material

  • Glass
Close

Applications

  • Continuous level indication without supply voltage
  • Direct indication of the level
  • Individual design and corrosion-resistant materials make the products suitable for a broad range of applications
  • Chemical industry, petrochemical industry, oil and natural gas extraction (on- and offshore), shipbuilding, machine building, power generating equipment, power plants
  • Oil and gas, heat transfer and refrigeration systems, plants for cryogenics
