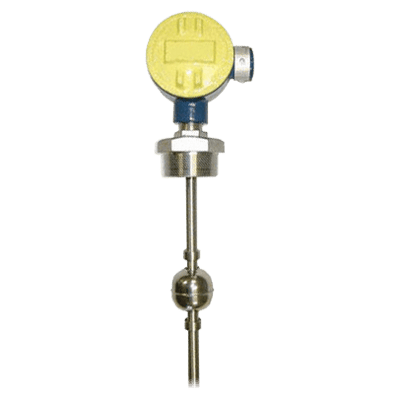

FLR Series Magnetic Float Level Switch

Brand: Automation Products Group - APG
Request Information
The FL Magnetic Level Switch is designed to meet demanding customer applications for liquid level sensing in rugged hostile environments. Each FL is manufactured to the users specifications making it fit to work precisely according to the application requirements.
Features
  • Custom tailored to user specifications
  • Long switch life
  • Up to seven switch points



The FL Magnetic Level Switch is designed to meet demanding customer applications for liquid level sensing in rugged hostile environments. Each FL is manufactured to the users specifications making it fit to work precisely according to the application requirements.
Features
  • Custom tailored to user specifications
  • Long switch life
  • Up to seven switch points



Close
Close

Specifications

Brand

Cable Entry

  • 3/4” NPT

Electrical Contacts

  • Normally Closed
  • Normally Open

Electrical Rating

  • 0.5 A AC, Max.
  • 180 VA
  • 50 VA

Environmental Protection

  • IP65
  • NEMA 4
  • NEMA 7

Flange Size - 2” (DN 50)

  • 2” (DN 50) - 150#
  • 2” (DN 50) - DIN 10K
  • 2” (DN 50) - JIS 10K

Flange Size - 2-1/2” (DN 65)

  • 2-1/2 (DN 65) - 150#

Flange Size - 3” (DN 80)

  • 3” (DN 80) - 150#

Flange Size - 4” (DN 100)

  • 4” (DN 100) - 150#

NPT Connection

  • 1-1/2” NPT Male
  • 2” NPT Male
  • 2-1/2” NPT Male
  • 3” NPT Male

Operating Temperature - Electronics

  • -10° to 100°C (14° to 212°F)

Operating Voltages

  • 220 Vac

Sensor, Probe Style

  • Float

Switch Type

  • SPST

Wetted Materials

  • 316 Stainless Steel
