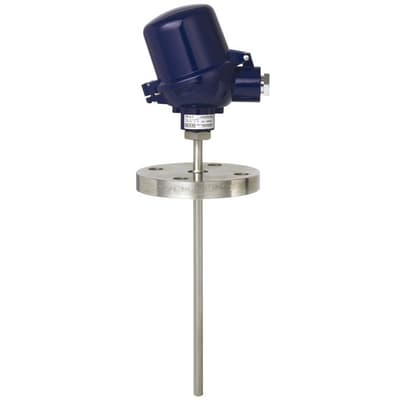

Flanged Thermocouple - TC10-F

Brand: WIKA Alexander Wiegand SE & Co. KG
Request Information
Thermocouples of this series are designed for fitting into vessels and pipelines. Standard flanges to DIN EN or ASME are available.

These temperature sensors are suitable for liquid and gaseous media under moderate mechanical load. The protection tube is all welded and screwed into the connection head. Stainless steel protection tubes are suitable for normal chemical conditions.

Coating is recommended as an optional extra with chemically aggressive media, or solid wear-resistant coating for abrasive media.
Features
  • Application ranges from 0 to 1,200 °C (32 to 2,192 °F).
  • Model TW40 protection tube included.
  • Spring-loaded measuring insert (replaceable).
  • Explosion-protected versions.
Thermocouples of this series are designed for fitting into vessels and pipelines. Standard flanges to DIN EN or ASME are available.

These temperature sensors are suitable for liquid and gaseous media under moderate mechanical load. The protection tube is all welded and screwed into the connection head. Stainless steel protection tubes are suitable for normal chemical conditions.

Coating is recommended as an optional extra with chemically aggressive media, or solid wear-resistant coating for abrasive media.
Features
  • Application ranges from 0 to 1,200 °C (32 to 2,192 °F).
  • Model TW40 protection tube included.
  • Spring-loaded measuring insert (replaceable).
  • Explosion-protected versions.
Close

Specifications

Brand

Sensor Range

  • -40 to 1,200° C (-40 to 2,192° F)

Certifications & Approvals

  • NAMUR NE24
  • SIL 2
  • Uzstandard
  • UkrSEPRO
  • BelGIM
  • KazInMetr
  • GOST
  • DNOP-MakNII
  • PESO
  • KOSHA
  • NEPSI
  • INMETRO
  • EAC
  • IEC
  • IECEx
  • CE
  • MTSCHS

Environmental Protection

  • IP68
  • IP65

Head Material

  • Stainless Steel
  • Plastic
  • Aluminium
  • Polypropylene

Process Connection

  • M24 x 1.5
  • 1/2” NPT

Thermocouple Type

  • Type K, J, E, N, T
Close

Applications

  • Machine building, plant and vessel construction
  • Energy and power plant technology
  • Chemical and petrochemical industry
  • Food and beverage industry
  • Sanitary, heating and air-conditioning technology
