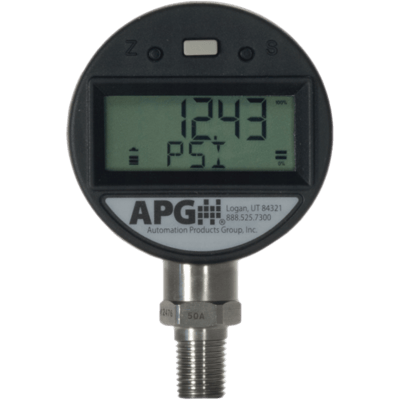

PG5 Digital Pressure Gauge

Brand: Automation Products Group - APG
Request Information
The PG5 Digital Pressure Gauge is the foundation to our PG series of gauges. Built for accurate pressure measurements, the PG5 eliminates inaccuracies for a measurement you can trust.
Features

  • Large, Full 5-digit display with 0.4 inch characters
  • Available ranges from vacuum up to 10,000 psi
  • Tare, Peak Hold, and Max/Min functions standard
  • ±0.25% accuracy of full scale
  • User selectable units of measure (PSI, kPa, mmHg, mbar, inH2O, ftH2O, kg/cm2)



The PG5 Digital Pressure Gauge is the foundation to our PG series of gauges. Built for accurate pressure measurements, the PG5 eliminates inaccuracies for a measurement you can trust.
Features

  • Large, Full 5-digit display with 0.4 inch characters
  • Available ranges from vacuum up to 10,000 psi
  • Tare, Peak Hold, and Max/Min functions standard
  • ±0.25% accuracy of full scale
  • User selectable units of measure (PSI, kPa, mmHg, mbar, inH2O, ftH2O, kg/cm2)



Close
Close

Specifications

Brand

Accuracy

  • ± 0.1 % of Span
  • ± 0.25 % of Span

Approvals & Certifications

  • CE

BSP Connection

  • 1/4” BSP Male

Display

  • 5-Digit LCD

Enclosure, Body Material

  • Injection Molded Base (EMI-X)

Mounting

  • Bottom Mounting
  • Bottom Mounting with Rubber Boot
  • Rear Mounting
  • Rear Mounting with Panel Bracket

NACE & NIST

  • NIST Certification (Select Ranges)

NPT Connection

  • 1/4” NPT Male
  • 1/8” NPT Female

Operating Temperature

  • -18° to 71°C, 0° to 160°F

Output

  • 0 to 2 Vdc
  • 0-5 Vdc
  • 4-20 mA

Pressure Range

  • bar: 0 to 68.9
  • kPa: 0 to 6,895
  • psi: 0 to 10,000

Pressure Type

  • Gauge

SAE Connection

  • 7/16”-20 SAE Male

Size

  • Face: 2.66”

Storage Temperature

  • -40° to 71° C (-40° to 160° F)

Supply Voltage

  • 9-28 Vdc
  • 9 V Lithium Battery

Wetted Materials

  • 316L Stainless Steel: up to 5,000 psi
  • 630 Stainless Steel: up to 5,000 psi & above
