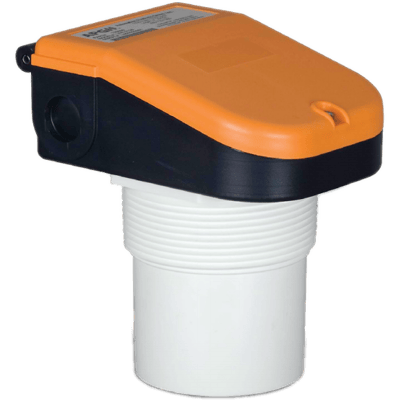

/LOE-Ultrasonic-Level-Sensor/main_LOE_Front.png)
/LOE-Ultrasonic-Level-Sensor/002_LOE_Side.png)
/LOE-Ultrasonic-Level-Sensor/003_LOE_Back.png)
Images are representations only.
Description
The LOE ultrasonic sensor series is designed for remote level mesasurement. Simply plug in your ethernet cable for inexpensive, web-based remote level measurement. They are fully programmable for various applications, giving the user complete control. Each LOE can also serve as a Modbus network controller for up to 10 slave sensors.
Features- Programmable response time
- RS-485 Modbus communication
- LAN Embedded Webpage
Configure
Specifications
Specifications
Accuracy
- ± 0.25 % of Span
Approvals & Certifications
- CSA Class I, Div. 2, Grade A, B, C, D
Communication
- Ethernet TCP/IP to Internal Web Page or APG Website
Electrical Connectors
- 6-Conductor Shielded Cable
Enclosure, Body Material
- Kynar (PVDF) Transducer Housing
- PCB/PET Blend Upper Housing
Environmental Protection
- IP65
Input Power
- 24 Vdc
NPT Connection
- 2” NPT Male
- 3” NPT Male
Operating Temperature - Electronics
- -40° to 60° C (-40° to 140° F)
Output
- 120 mA - Max.
Principle of Operation
- Continuous Level Sensor
Relay Operation
- Two 2 Isolated Solid State Relays
Resolution
- 0.1” (2.5 mm)
Response Time
- Up to 5 Hz, Once Every 200 milliseconds
Sensing Range
- 4” to 40 feet (0.10 to 12.19 metres)
- Feet: 0 to 10
- Feet: 10 to 25
- Feet: 25 to 35
- Feet: 35 to 50
- Meters: 0 to 3.05
- Meters: 10.66 to 15.24
- Meters: 3.05 to 7.62
- Meters: 7.62 to 10.66
Sensor, Probe Style
- Ultrasonic
Wetted Materials
- Polyvinylidene Fluoride
