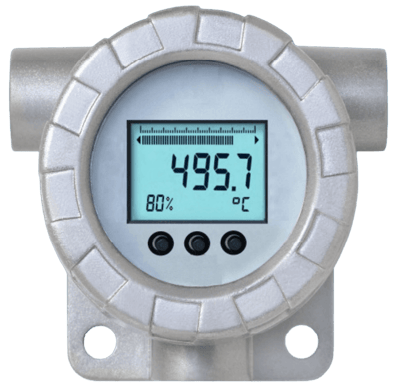

108EL Field Mounted Loop-Powered Indicator

Brand: International Metal Engineering (IME)
Request Information
IME Model 108EL Loop-Powered Digital Indicators allow the process variable from any 4-20 mA current source to be monitored in engineering units. Since the unit derives its power from the loop, no additional power supply or wiring is needed. Because of its low voltage drop (3.5 V at 20 mA), the model 108EL can be incorporated into almost any 2-Wire loop, where local indication of a process variable is needed.

IME Model 108EL Indicators are designed for use in process industries where vibration, inclement weather and corrosive atmospheres prevail. The electronics are enclosed in a low cost UV resistant polycarbonate housing, which meets NEMA 4X and IP66/68 requirements.
Features
  • 4-20 mA input, loop-powered
  • LCD glass backlit display with a choice of engineering units
  • Polycarbonate enclosure
  • Wall or pipe mounting
IME Model 108EL Loop-Powered Digital Indicators allow the process variable from any 4-20 mA current source to be monitored in engineering units. Since the unit derives its power from the loop, no additional power supply or wiring is needed. Because of its low voltage drop (3.5 V at 20 mA), the model 108EL can be incorporated into almost any 2-Wire loop, where local indication of a process variable is needed.

IME Model 108EL Indicators are designed for use in process industries where vibration, inclement weather and corrosive atmospheres prevail. The electronics are enclosed in a low cost UV resistant polycarbonate housing, which meets NEMA 4X and IP66/68 requirements.
Features
  • 4-20 mA input, loop-powered
  • LCD glass backlit display with a choice of engineering units
  • Polycarbonate enclosure
  • Wall or pipe mounting
Close
Close

Specifications

Brand

Accuracy

  • Indication Accuracy: 0.1 % of Calibrated Range ± 1-Digit

Conduit Connection

  • 1/2” BSP Female
  • 1/2” NPT Female
  • 3/4” NPT Female
  • M20 x 1.5P

Diameter

  • Cable Size: 0.19 to 0.70” (5 to 18 mm)

Display

  • LCD Glass Backlit

Enclosure, Body Material

  • UV Resistant Polycarbonate

Environmental Protection

  • IP66
  • IP68
  • NEMA 4X

Input

  • 4-20 mA

Instrument Connection

  • M16 x 2P

Mounting

  • Field Mounting
  • Pipe
  • Wall Mounting

O-Ring Material

  • Hydrogenated Nitrile

Operating Temperature

  • Ambient Operating Temperature: -20° to 60° C (-4° to 140° F)

Response Time

  • Digital Damping: 0 to 100 seconds (Step 0.1 second)

Stability

  • Stability over Time: 0.1 % of Calibrated Range ± 1-Digit over 6 Months

Voltage Drop

  • 3.5 V at 20 mA
