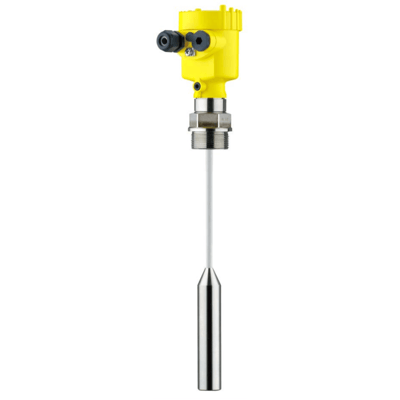

Vegacap 66 Capacitive Level Switch

Brand: VEGA
Request Information
The VEGACAP 66 is a point level sensor for use in all industries.

The fully insulated probe measures liquids as well as bulk solids.

The proven construction ensures high functional safety.
Features
  • Long Lifetime and reduced Maintenance through Robust Mechanical Construction
  • Savings through Simple Mounting and Setup
  • Simple Planning due to Variable Switching Point
The VEGACAP 66 is a point level sensor for use in all industries.

The fully insulated probe measures liquids as well as bulk solids.

The proven construction ensures high functional safety.
Features
  • Long Lifetime and reduced Maintenance through Robust Mechanical Construction
  • Savings through Simple Mounting and Setup
  • Simple Planning due to Variable Switching Point
Close

Specifications

Brand

Ambient Temperature Range

  • -40° to 80° C (-40° to 176° F)

Approvals & Certifications

  • ATEX
  • EAC
  • FM
  • IEC
  • IEC Ex
  • SIL

BSP Connection

  • G 1”
  • G 3/4”

Enclosure, Body Material

  • Aluminum
  • Plastic
  • Stainless Steel

Environmental Protection

  • Intrinsically Safe
  • IP67

Length

  • 105 feet (32 metres) - Sensor

NPT Connection

  • 1” NPT

Operating Voltages

  • 20-253 Vac
  • 20-253 Vdc
  • 50/60 Hz

Output

  • 10-400 mA - Load Current
  • 2-Wire

Output Format

  • Relay DPDT
  • Transistor (NPN/PNP)

Pressure Range

  • psig: -14.5 to 580 (kPa: -100 to 4,000, bar: -1 to 40)

Process Temperature

  • -50° to 150° C (-58° to 302° F)

Response Time

  • 0.7 second (ON/OFF)

Seat / Seal Material

  • Klingersil C 4400

Sensor, Probe Material

  • 316L Stainless Steel

Storage Temperature

  • -40° to 80° C (-40° to 176° F)

Wetted Materials

  • 316L Stainless Steel
  • PTFE
  • Steel C22.8
