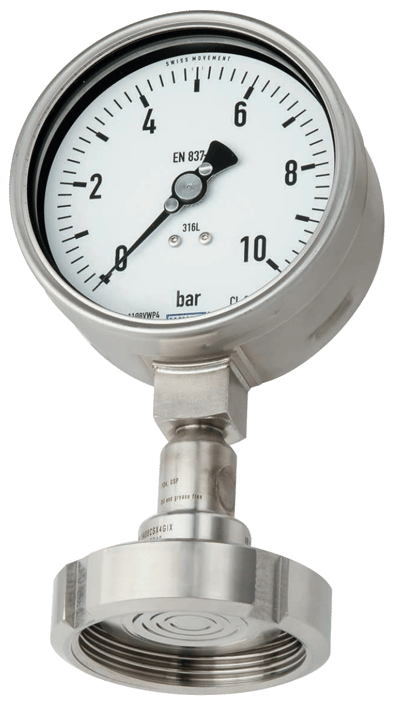

Model DSS18F Pressure Gauge per EN 837-1 with Mounted Diaphragm Seal

Brand: WIKA Alexander Wiegand SE & Co. KG
Request Information
Diaphragm seal systems are used to protect the pressure measuring instrument from aggressive, adhesive, crystallising, corrosive, highly viscous, environmentally hazardous or toxic media.

The diaphragm made of stainless steel provides for the separation from the medium. The pressure is transmitted to the measuring instrument via the system fill fluid which is inside the Diaphragm seal system.
Features
  • Quick cleaning, without residue.
  • Milk thread fitting per DIN 11851.
  • Suitable for cleaning out of place (COP).
show more
Diaphragm seal systems are used to protect the pressure measuring instrument from aggressive, adhesive, crystallising, corrosive, highly viscous, environmentally hazardous or toxic media.

The diaphragm made of stainless steel provides for the separation from the medium. The pressure is transmitted to the measuring instrument via the system fill fluid which is inside the Diaphragm seal system.
Features
  • Quick cleaning, without residue.
  • Milk thread fitting per DIN 11851.
  • Suitable for cleaning out of place (COP).
Close

Specifications

Brand

Design

  • Pressure gauge with Bourdon Tube per EN 837-1, welded to Diaphragm Seal

Nominal Size (NS)

  • 100

Accuracy Class

  • 1.0

Scale Range

  • 0 to 1 to 0 to 25 bar [0 to 15 to 0 to 360 psi] or all other equivalent vacuum or combined pressure and vacuum ranges

Pressure Limitation

  • Short Time: 1.3 x Full Scale Value
  • Fluctuating: 0.9 x Full Scale Value
  • Steady: Full Scale Value

Permissible Temperature Range

  • Storage:  10° to 60° C [50° to 140° F]
  • Ambient:  10° to 40° C [50° to 104° F]
  • Medium:  10° to 80° C [50° to 176° F] for CIP and SIP Max. 130° C [266° F]

Ingress Protection

  • IP65 per IEC/EN 60529

Wetted Material

  • Diaphragm Seal: Stainless Steel
  • Diaphragm: Stainless Steel 1.4435 [316L]

Non-Wetted Material

  • Window: Laminated Safety Glass
  • Case: Stainless Steel 1.4301 [304]
  • Dial, Pointer: Aluminium

Wetted Surface Roughness

  • Ra ≤ 0.76 µm [30 µin] per ASME BPE SF3 (Except for weld seam)

Non-Wetted Surface Roughness

  • Case: Ra ≤ 0.76 µm [30 µin] (Except for weld seam)

Level of Cleanliness of Wetted Parts

  • Oil and grease free per ASTM G93-03 level F (WIKA Standard) (< 1,000 mg/m²)

System Fill Fluid

  • Medicinal White Mineral Oil KN 92 (FDA 21 CFR 172.878, 21 CFR 178.3620(a), USP, EP, JP)
Close

Applications

  • Hygienic pressure measurement in sanitary applications for the food and beverage industry
  • For dairies, dairy products, breweries and soft drink production
  • Mechanical pressure display on pipelines and vessels
  • For gases, vapour; liquid, pasty, powdery and crystallising media
