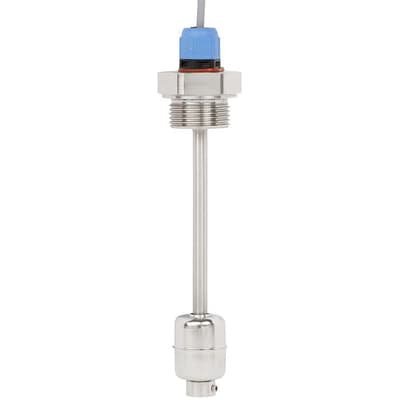

Magnetic Float Switch with Optional Temperature Output - RLS-4000
Description
The model RLS-4000 float switch with optional temperature output has been designed for the recording of level and temperature at hazardous measuring points.
The stainless steel used is suitable for a multitude of media, such as, for example, oil, diesel and refrigerants.
Features- Media compatibility: Oil, diesel, refrigerants and other liquids.
- Level: Up to 4 switching outputs, freely definable as normally open, normally closed or change-over contact.
- Level and temperature: Up to 3 switching outputs,freely definable as normally open, normally closedor change-over contact and 1 bimetal temperature switchor Pt100/Pt1000, accuracy: Class B.
- Potential-free switching reed contacts.
Specifications
Specifications
Certifications & Approvals
- CE
- RoHS
- IECEx
Environmental Protection
- IP54
Process Connection
- Flange DN 50, form B per DIN 2527/EN 1092, PN 16
- G 1/2” B
- G 3/8” B
- G 1/4” B
- G 2”
- G 1-1/2”
- G 1”
- G 1/8” b
Float Material
- 316Ti Stainless Steel
Case Material
- 316Ti Stainless Steel
Accuracy
- ± 3 mm switch point accuracy
- Bimetal switch: ± 5° C switch point accuracy, ± 20° C hysteresis
Measuring Range
- 60 to 1,500 mm (2.5 to 59 in)
Applications
Applications
- Combined level and temperature measurement of liquids in machine building
- Control and monitoring tasks for hydraulic power packs, compressors and cooling systems
