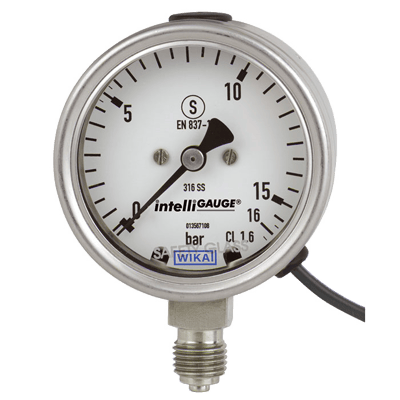

Bourdon Tube Pressure Gauge with Output Signal - PGT23.063

Brand: WIKA Alexander Wiegand SE & Co. KG
Request Information
For the process industry, safety version, NS 63.
Features
  • No configuration necessary due to "plug-and-play".
  • Measuring ranges from 0 ... 1 bar to 0 ... 1,000 bar.
  • Easy-to-read Analog display with nominal size 63.
  • Safety pressure gauge S3 per EN 837-1.
For the process industry, safety version, NS 63.
Features
  • No configuration necessary due to "plug-and-play".
  • Measuring ranges from 0 ... 1 bar to 0 ... 1,000 bar.
  • Easy-to-read Analog display with nominal size 63.
  • Safety pressure gauge S3 per EN 837-1.
Close

Specifications

Brand

Certifications & Approvals

  • CE
  • Uzstandard
  • BelGIM
  • MTSCHS
  • GOST
  • CRN
  • EAC

Environmental Protection

  • IP54

Output Signal

  • 4-20 mA

Dial Material

  • Aluminium, White, Black Lettering

Case Material

  • Stainless Steel

Window Material

  • Laminated Safety Glass
  • Polycarbonate

Pressure Element

  • 316L Stainless Steel

Process Connection

  • G 1/4” B Male

Process Connection Material

  • 316L Stainless Steel

Scale Range

  • -1 to 1,000 bar

Accuracy

  • ≤ 1.6 % of Measuring Span

Nominal Size

  • 63 mm
