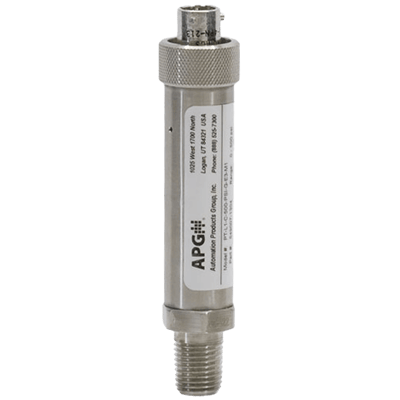

PT-L1 / L3 / L10 / L11 / L12 / L21 Pressure Transmitter

Brand: Automation Products Group - APG
Our amplified output pressure transmitters are the economical answer for all applications requiring high accuracy and reliability over a wide range of pressures.

The PT-L1/L3/L10/L11/L12/L21 pressure transmitters offer ranges from vacuum to 10,000 psi, All-Stainless steel construction, high burst pressure, and high accuracy.
Features
  • Cost Effective
  • High overpressure capability
  • Zero and span adjustments
  • Single piece stainless steel process fitting and sensor



Our amplified output pressure transmitters are the economical answer for all applications requiring high accuracy and reliability over a wide range of pressures.

The PT-L1/L3/L10/L11/L12/L21 pressure transmitters offer ranges from vacuum to 10,000 psi, All-Stainless steel construction, high burst pressure, and high accuracy.
Features
  • Cost Effective
  • High overpressure capability
  • Zero and span adjustments
  • Single piece stainless steel process fitting and sensor



Close

Displaying prices & availability for Ohio, United States in USD. Change location or currency.

Models matching criteria: 1
PT-L11-C-3000-PSIS-E3-P32-V1-K1
APG PT-L1 Transducer, 1-6 VDC, 0-3000 psi, Sealed, 4 Pin Bayonet, 7/16-20 SAE with Flanged Face view more
  • L11-C:  1-6 VDC
  • 3000 PSI: Pressure Range
  • S: Pressure Type - Sealed
  • E3: 4-pin bayonet
  • P32: 7/16-20 SAE with Flanged *Face (*Nut with Loc-Tite applied) / (CAE/Motronics)
  • V1: High Vibration
  • K1: Tamper Proof
  • Certification: Class I, Div 1, Groups C,D
3 - 4 weeks
$768.99 USD
Close
Close

Specifications

Brand

Accuracy

  • ± 0.5 %
  • BFSL ≤ 0.25 % of Full Scale
  • Up to ± 1.0 % Available on Select Ranges

BSP Connection

  • 1/2” BSPP Male
  • 1/4” BSP Male
  • 3/8” BSPP Male

Cable Length

  • 5 feet, 1.5 metres

Compensated Temperature

  • -17° to 54° C, 0° to 130° F
  • -17° to 85° C, 0° to 185° F - Extended Temperature Compensation Range
  • -40° to 82° C, -40° to 180° F - Extended Temperature Compensation Range

Cone & Thread Connection

  • High Pressure SnoTrik, M-250C Autoclave Male

Electrical Connectors

  • 4-Pin Bayonet Connector
  • 4-Pin M12 Micro Connector
  • 6-Pin Bayonet Stainless Steel
  • 6-Pin Circular
  • Pigtail with Cable

Electrical Protection

  • Reverse Polarity

NACE & NIST

  • NIST

NPT Connection

  • 1/4”-18 Female NPT
  • 1/4”-18 Male NPT
  • 1/8”-27 Male NPT

Options

  • Can Assembly - Can Welded to Fitting & Connector
  • Can Assembly - Knurled
  • Can Assembly - Tamper Resistant with Loc-Tite
  • Can Assembly - Tamper Resistant with Weld
  • High Vibration

Output

  • 0 - 10 Vdc
  • 0 - 5 Vdc
  • 1 - 10 Vdc
  • 1 - 5 Vdc
  • 1 - 6 Vdc
  • 4 - 20 mA

Pressure Range

  • bar: 0 - 689.5
  • kPa: 0 - 68,947
  • psi: 0 - 10,000

Pressure Type

  • Absolute
  • Compound - Vacuum & Gauge Pressure
  • Gauge
  • Sealed Gauge
  • Vacuum

SAE Connection

  • 7/16”-20 SAE Male
  • 7/16”-20 SAE Male Flush Mount

Supply Voltage

  • 0 - 10 VDC: 14 - 33 Vdc
  • 0 - 5 Vdc, 1 - 5 VDC & 1 - 6 VDC: 9 - 33 VDC
  • 4 - 20 mA: 10 - 36 VDC

UNF/UNC Connection

  • 7/16”-20 UNF Male with Cone

Wetted Materials

  • 316L Stainless Steel
  • 630 Stainless Steel (17 - 4)
  • 632 Stainless Steel (15 - 5)
