Multipoint Resistance Thermometer in Band Design - TR95

Brand: WIKA Alexander Wiegand SE & Co. KG
Multipoint thermometers are often used for measuring temperature profiles in reactors or fuel depots or for the detection of the so-called "hotspots".

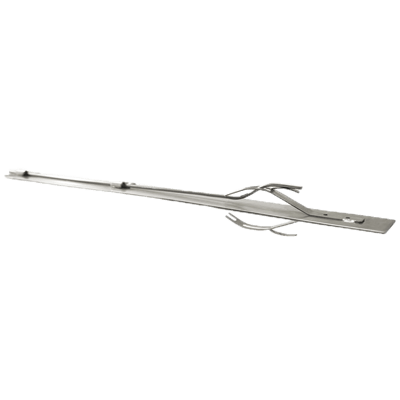

The so-called multipoint thermometer in band design is a common construction. In this design, several, if required, exchangeable thermocouples or resistance thermometers are linearly arranged on a guide band.
Features
  • Versions to customer specification.
  • Various process connections.
  • Exchangeable measuring inserts.
  • Application in conjunction with a thermowell.
  • Explosion-protected versions Ex i, Ex n and.
Multipoint thermometers are often used for measuring temperature profiles in reactors or fuel depots or for the detection of the so-called "hotspots".

The so-called multipoint thermometer in band design is a common construction. In this design, several, if required, exchangeable thermocouples or resistance thermometers are linearly arranged on a guide band.
Features
  • Versions to customer specification.
  • Various process connections.
  • Exchangeable measuring inserts.
  • Application in conjunction with a thermowell.
  • Explosion-protected versions Ex i, Ex n and.

Specifications

Versions

  • Model Tx95-A-B: with thermowell
  • Model Tx95-B-B: without thermowell

Materials

  • 316L Stainless Steel or 1.4571
  • Special Alloys or carbon Steels as thermowell material

Process Connection

  • Flanges of all major national and international Standards
  • Threaded Connections with Male or Female threads to customer Specifications
  • High Pressure Connections, such as sealing cone or lens-Type sealing ring to customer specifications

Sensors TC95-x-B

  • Thermocouples as sheathed cable installation
  • Single, double Element
  • Measuring point ungrounded or grounded
  • For details, see data sheet TE 65.40 of the cable thermocouple model TC40

Sensors TR95-x-B

  • PT100 ClassA or B as sheathed cable installation
  • Single, double Sensor
  • For details, see data sheet TE 60.40 of the cable resistance thermometer model TR40

Shipping

  • Model Tx95-A-B with thermowell: in wooden box with lengths of up to 12 metres
  • Model Tx95-B-x without thermowell: in wooden box, depending on Design straight or rolled

Applications

  • Chemical and petrochemical industry
  • Measurement of temperature layerings or hotspots in reactors
  • Fuel depots
