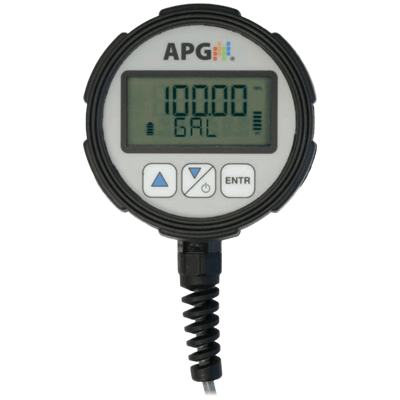

LPD Loop-Powered Display

Brand: Automation Products Group - APG
Request Information
The LPD Loop-Powered Displays are designed to be inserted into a 4-20 mA sensor current loop to provide a local display without additional wiring. Setup is easy using the 3 buttons on the display.
Features
  • Large, full 5-digit display with 0.4 inches characters and 6-digit description line
  • Environmentally sealed housing; IP67 or IP68 certification
  • 4-20 mA input
  • Easy 3-button programming
  • User selectable units of measure (barrels, cubic inches, liters, cubic meters, gallons, million cubic feet, cubic feet, custom)
  • Optional RS-485 / Modbus RTU output


The LPD Loop-Powered Displays are designed to be inserted into a 4-20 mA sensor current loop to provide a local display without additional wiring. Setup is easy using the 3 buttons on the display.
Features
  • Large, full 5-digit display with 0.4 inches characters and 6-digit description line
  • Environmentally sealed housing; IP67 or IP68 certification
  • 4-20 mA input
  • Easy 3-button programming
  • User selectable units of measure (barrels, cubic inches, liters, cubic meters, gallons, million cubic feet, cubic feet, custom)
  • Optional RS-485 / Modbus RTU output


Close
Close

Specifications

Brand

Accuracy

  • ± 1 Count

Cable Entry

  • 1/2” NPT
  • 3/4” NPT

Communication

  • Baud Rate: 2,400, 9,600, 19,200, 38,400
  • RS-485 (Modbus RTU)

Cover Material

  • Aluminum Black Anodized
  • Black Acrylic 3/16”
  • Black Delrin

Display

  • 5-Digit LCD Display, 0.4” Digits, 6-Character Description Field

Electrical Connectors

  • 4-Pin, M12 (Micro) Connector (Male & Female)
  • Flying Leads

Enclosure, Body Material

  • Aluminum (3” or 4”)
  • Plastic (3.25”)

Environmental Protection

  • IP67
  • IP68

Input

  • 4-20 mA

Materials of Construction

  • Boot: Rubber

Mounting

  • Flat Mount Bracket
  • Panel Mount Bracket
  • Rubber Boot
  • Standoff Mount Bracket

Operating Temperature

  • -18° to 71° C (0° to 160° F)

Output

  • 4-20 mA, Loop Powered

Programming

  • 3 Button Keypad

Storage Temperature

  • -40° to 71° C (-40° to 160° F)

Update Time

  • Display: 500 milliseconds

Voltage Drop

  • Maximum
  • Typical: 4.3 Vdc
