Description

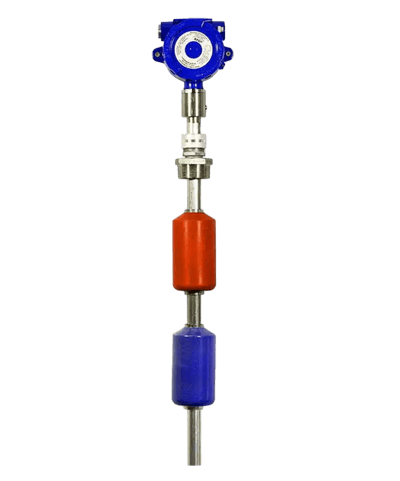

The MPX Series Magnetostrictive Level sensor provides highly accurate and repeatable level readings in a wide variety of liquid level measurement applications. The MPX-T’s 1”Ø titanium stem extends its chemical capabilities for use in rougher, tougher environments, including H2S. All four stems carry Class I, Division 1 & 2 and Class I, Zone 1 & 2 approvals for use throughout North America.
Features- Class I Division 1 Groups C & D, Class I Zone 1, Class I Zone 2
- Highly accurate and repeatable readings
- 4-20 mA (single or dual float), RS-485 (Modbus RTU) output
- Rugged and reliable, lengths up to 31.5 feet (9.60 m)
- Dual level (interface) measurement
- Tank volume/level, strapping table
Configure
Specifications
Specifications
Distance Accuracy
- 4-20 mA, Modbus: Greater of ± 0.05 % Full Scale or 1 mm
Electrical
- Reverse polarity protection
- Surge protection (Output 4 only)
Electrical Connection
- Terminal Block, 12-24 VDC
Environmental Rating
- IP65
Housing Material
- Cast aluminum, epoxy coated
Internet Connectivity
- Tank Cloud LOE Master RST-5003
Output
- 4-20 mA (Loop-Powered 2-wire)
- Dual 4-20 mA (Loop-Powered 3-wire)
Probe Operating Temperature
- -40° to 85° C (-40° to 185° F)
Programming
- RS-485: optional RST-6001 USB to RS-485 converter
- 4-20 mA: factory set or optional RST-4100 programming module
Resolution
- 4-20 mA: 14 bit DAC (1 mm)
- Modbus: 0.04 in. (1 mm)
Stem Length
- 4 - 25 ft (1.22 - 7.62 m)
Stem Material
- 1.0" Ø Titanium 2
Temperature Accuracy
- RTD - 1k ohm: ± 1° C
Typical Current Draw
- 4-20 mA: (single) 4-22 mA, (dual) 8-44 mA
- Modbus (RS-485): 28 mA
