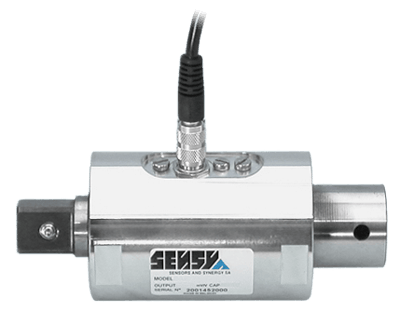

62100/62200 Non Contact Rotary Torque Sensor

Brand: Sensy - Sensors & Synergy S.A.
Request Information
Sensy's 62100-62200 sensors allow an easy and cheap torque measurement for test benches and production lines. The torque sensing shaft, the non-contact signal detector, and Analog signal conditioning electronics are integrated into the sensor housing. The torque sensor is characterized by very low power consumption, internally amplified output voltage signal, long-term stability and a very good price-performance ratio.
Features
  • Bi-directional measurement range (-500 to 0 to 500 Nm)
  • Torque measurements up to 5,000 rpm
  • Maintenance-free operation
  • High tolerable dynamic loads
  • High tolerable transverse forces and bending moments
show more
Sensy's 62100-62200 sensors allow an easy and cheap torque measurement for test benches and production lines. The torque sensing shaft, the non-contact signal detector, and Analog signal conditioning electronics are integrated into the sensor housing. The torque sensor is characterized by very low power consumption, internally amplified output voltage signal, long-term stability and a very good price-performance ratio.
Features
  • Bi-directional measurement range (-500 to 0 to 500 Nm)
  • Torque measurements up to 5,000 rpm
  • Maintenance-free operation
  • High tolerable dynamic loads
  • High tolerable transverse forces and bending moments
Close
Close

Specifications

Brand

Applications

  • Production Areas
  • Test Bench Equipment
  • Torque Measurement

Approvals & Certifications

  • CE

Capacity

  • 2.5 to 500 Nm

Environmental Protection

  • IP50

Excitation Voltage

  • 9-12 Vdc

Linearity

  • Error: < ± 1 % of Full Scale

Output

  • 0-5 Vdc - Output Tension

Repeatability

  • < ± 0.05 % of Full Scale - Error

Service Temperature

  • -30° to 85° C (-22° to 185° F)

Storage Temperature

  • -30° to 100° C (-22° to 212° F)

Temperature Coefficient

  • < 1 % of Full Scale / 10° C (18° F) - Temperature Coefficient of Zero Signal & Sensitivity
