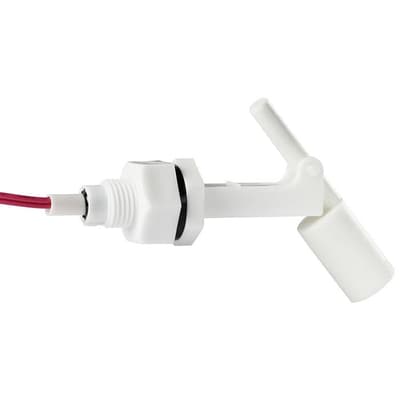

Magnetic Float Switch - HLS-M

Brand: WIKA Alexander Wiegand SE & Co. KG
Request Information
With its compact design, the model HLS-M float switch for horizontal installation in miniature design is ideally suited for use in small tanks, for indicating minimum/maximum levels.
Features
  • Lateral installation in the tank
  • Operating limits:
    • Operating temperature: T = -40 ... +120 °C
    • Operating pressure: P = 5 bar
    • Limit density: ρ ≥ 800 kg/m3
  • Plastic and stainless steel versions
  • Space-saving installation
  • Switch consists of only one component
With its compact design, the model HLS-M float switch for horizontal installation in miniature design is ideally suited for use in small tanks, for indicating minimum/maximum levels.
Features
  • Lateral installation in the tank
  • Operating limits:
    • Operating temperature: T = -40 ... +120 °C
    • Operating pressure: P = 5 bar
    • Limit density: ρ ≥ 800 kg/m3
  • Plastic and stainless steel versions
  • Space-saving installation
  • Switch consists of only one component
Close

Specifications

Brand

Enclosure / Body Material

  • Stainless Steel
  • Plastic

Environmental Protection

  • IP65

Certifications & Approvals

  • CE

Material of Construction

  • Polypropylene
  • Stainless Steel 1.4301

Process Connection

  • 1/2” Male NPT
  • G 1/8” Male
  • G 1/4” Male

Mounting Position

  • Horizontal

Maximum Operating Pressure

  • Stainless Steel version: 5 bar
  • Plastic version: 1 bar
Close

Applications

  • Level monitoring and level indication of liquids
  • Level detection for almost all liquid media
  • Pump and level control
  • Alarm signals
  • Dry-run and overflow protection
