Description

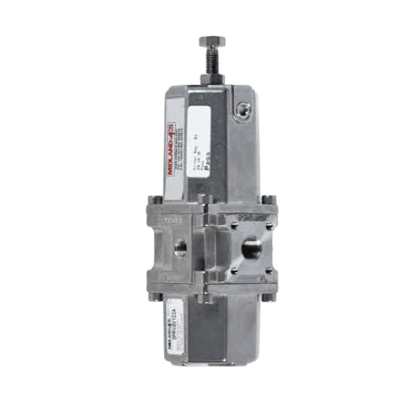

A 316L stainless steel unit for the pressure regulation of compressed air and gases for the actuation industries.
Features- Specifically Designed for Severe Environments
- Non or Self-Relieving
- Ambient Temperature Range -20° to 80° C (-4° to 176° F) Low Temperature Version Available
- 316L Stainless Steel Construction
- Large Flow Characteristics
Configure
Specifications
Specifications
Brand
Accessories
- Hand Wheel
- Mounting Brackets
- Stainless Steel Pressure Gauge
Ambient Temperature Range
- -50° to 90° C (-58° to 194° F)
Approvals & Certifications
- ATEX
- CE
- EAC
Enclosure, Body Material
- 316L Stainless Steel
Flow Capacity
- 1/2” - 4.4 Cv
- 1/2” & 3/4”- 218 scfm (370.8 m³/hour)
- 1/4” - 2.4 Cv
- 1/4”-133 scfm (226.8 m³/hour)
- 3/4” - 5.0 Cv
Gauge Connection
- 1/4” NPT
- 1/8” NPT
Media
- Air
- Inert Gas
- Sour Natural Gas
- Sweet Natural Gas
NPT Connection
- 1/2” NPT Female
- 1/4” NPT Female
- 3/4” NPT Female
Pressure Range
- bar: 0.50 to 12
- kPa: 50 to 1,200
- psi: 7.2 to 174
Seat / Seal Material
- Low Temperature Option - EPDM
- Standard Option - Fluoroelastomer
Supply Pressure - Maximum
- bar: 20
- kPa: 2,000
- psi: 290
Vent
- 1/8” NPT (Fitted with Breather)
