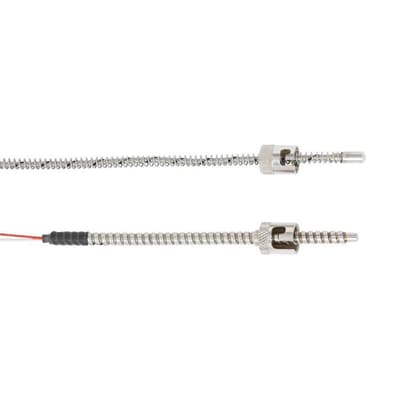

Adjustable Bayonet Thermocouple - TC47-AB

Brand: WIKA Alexander Wiegand SE & Co. KG
Request Information
The TC47-AB adjustable bayonet thermocouple is a General-Purpose temperature sensor designed to suit all applications where metal sheathed thermocouples are required.
Features
  • The sensor can be adjusted to a specific length and mounted into the process.
  • The thermocouple sensors are available with a variety of hold down mechanisms.
  • With or without stainless steel overbraid or interlocking flexible armour.
  • Tube and wire construction.
  • Interchangeable and easily replaceable.
The TC47-AB adjustable bayonet thermocouple is a General-Purpose temperature sensor designed to suit all applications where metal sheathed thermocouples are required.
Features
  • The sensor can be adjusted to a specific length and mounted into the process.
  • The thermocouple sensors are available with a variety of hold down mechanisms.
  • With or without stainless steel overbraid or interlocking flexible armour.
  • Tube and wire construction.
  • Interchangeable and easily replaceable.
Close

Specifications

Brand

Sensor Type

  • Type J, L, K, T

Sheath Material

  • Stainless Steel
  • Ni-Alloy 2.4816 (Inconel 600)

Operating Temperature

  • -50° to 482° C

Lead Wire

  • Fibreglass / fibreglass
  • PTFE / PTFE
  • PVC / PVC
  • Kapton / Kapton

Tip Diameter

  • 1/16" to 3/8"
  • 4 to 10 mm
Close

Applications

  • Plastics and Rubber Industry
  • For Direct Installation into the Process
  • Dies for Extrusion Profiles
  • Compression Platens
  • Packaging
