Fieldbus Temperature Transmitters - T53

Brand: WIKA Alexander Wiegand SE & Co. KG
Request Information

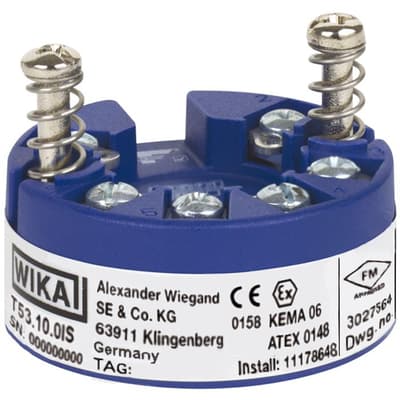

The model T53.10 fieldbus temperature transmitter with FOUNDATION™ and PROFIBUS® PA fieldbus communication is suitable for temperature measurement with resistance thermometers and thermocouples.

Furthermore resistance and mV measurements with or without customerspecific linearisation are possible.

Differential, average or redundancy temperature measurements can be realised.
Features
  • FOUNDATION™ Fieldbus ITK version 4.61.
  • PROFIBUS® PA profile 3.
  • Automatic switch between protocols.
  • Explosion protection Ex i, Intrinsically-Safe/FISCO.
  • Explosion protection Ex n.
The model T53.10 fieldbus temperature transmitter with FOUNDATION™ and PROFIBUS® PA fieldbus communication is suitable for temperature measurement with resistance thermometers and thermocouples.

Furthermore resistance and mV measurements with or without customerspecific linearisation are possible.

Differential, average or redundancy temperature measurements can be realised.
Features
  • FOUNDATION™ Fieldbus ITK version 4.61.
  • PROFIBUS® PA profile 3.
  • Automatic switch between protocols.
  • Explosion protection Ex i, Intrinsically-Safe/FISCO.
  • Explosion protection Ex n.
Close

Specifications

Brand

Environmental Protection

  • IP68
  • IP00

Case Material

  • Plastic, PBT, Glass-fibre reinforced

Temperature Range

  • Ambient & Storage: -40° to 85° C

Humidity

  • 95 % Relative Humidity, Non-Condensing

Sensor Type

  • Pt100

Sensor Connection

  • 3-Wire

Measurement Range

  • -200° to 850° C

Accuracy

  • ≤ ± 0.1° to 1.3° C
  • ≤ ± 0.05 Ω
Close

Applications

  • Process industry
  • Machine building and plant construction
