Tubeskin Thermocouple Assembly - TC59-X

Brand: WIKA Alexander Wiegand SE & Co. KG
Request Information
The XTRACTO-PAD® enables the measurement of a tube within a combustion furnace to be measured accurately. The XTRACTO-PAD® is a product developed by Gayesco International Inc. The expertise, knowledge and products of Gayesco are now part of the WIKA Group.

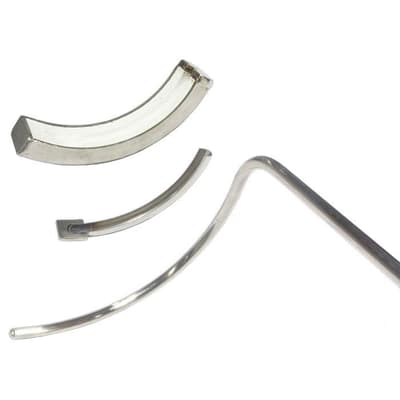

The XTRACTO-PAD® is a thermocouple design utilizing a guide channel and patented heat shield. A removable contoured thermocouple sensor made from mineral-insulated cable (sheathed cable) is installed in the guide channel and heat shield. It consists of a metal outer sheath, which contains the insulated internal leads, compressed within a high-density ceramic composition. The internal leads are made from thermo material. The material of the outer sheath can be selected to match the application. At one end of the sheathed cable, the internal leads are welded together to form an insulated (ungrounded) or non-insulated (grounded) measuring point.
Features
  • Removable thermocouple design.
  • Patented moldable heat shield.
  • Application ranges from 0 ... 1,260 °C (32 ... 2,300 °F).
  • Flexible sheathed cable, mineral-insulated internal leads.
  • High mechanical strength, shock resistant.
The XTRACTO-PAD® enables the measurement of a tube within a combustion furnace to be measured accurately. The XTRACTO-PAD® is a product developed by Gayesco International Inc. The expertise, knowledge and products of Gayesco are now part of the WIKA Group.

The XTRACTO-PAD® is a thermocouple design utilizing a guide channel and patented heat shield. A removable contoured thermocouple sensor made from mineral-insulated cable (sheathed cable) is installed in the guide channel and heat shield. It consists of a metal outer sheath, which contains the insulated internal leads, compressed within a high-density ceramic composition. The internal leads are made from thermo material. The material of the outer sheath can be selected to match the application. At one end of the sheathed cable, the internal leads are welded together to form an insulated (ungrounded) or non-insulated (grounded) measuring point.
Features
  • Removable thermocouple design.
  • Patented moldable heat shield.
  • Application ranges from 0 ... 1,260 °C (32 ... 2,300 °F).
  • Flexible sheathed cable, mineral-insulated internal leads.
  • High mechanical strength, shock resistant.
Close

Specifications

Brand

Connection Head Material

  • Aluminum
  • Stainless Steel

Environmental Protection

  • IP65

Sensor Type

  • Thermocouple Type K, J, E, N

Material of Construction

  • Insulation: PVC, PTFE, Gibreglass
  • Sheath: Inconel 600, Steel
  • XTRACTO-PAD: Hastelloy X, INconel 600, Stainless Steel 1.4841, 1.4749, 1.4401, Haynes HR 160, Pyrosil D

Range

  • 0 to 1,260° C (32 to 2,300° F)
Close

Applications

  • Chemical industry
  • Superheated steam applications
  • Refineries
  • Heating furnaces and high-performance boilers
  • Heat exchangers
