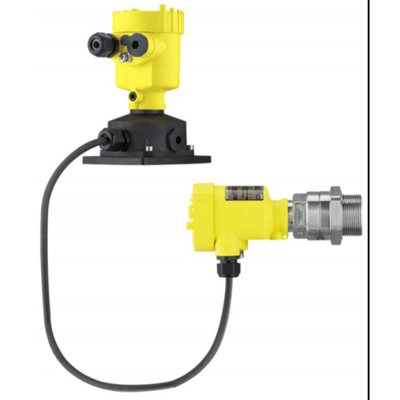

Vegamip T61 Microwave Emitter for Level Detection

Brand: VEGA
Request Information
The Vegamip T61 is the emitting unit, the Vegamip R62 the receiving unit of the microwave barrier in separate version for level detection of bulk solids and liquids.

Typical applications are the detection of bulk solids in silos, bunkers and crushers as well as of liquids in pipelines and vessels.

The non-contact measuring principle has no direct contact with the medium and ensures continuous wear-free and maintenance free operation.
Features
  • Reliable Measurement Even with Very Abrasive Products
  • Separate Instrument Version Enables Mounting for Hardly Accessible Installation Locations
  • Reliable Measurement Even with Changing Product Properties
show more
The Vegamip T61 is the emitting unit, the Vegamip R62 the receiving unit of the microwave barrier in separate version for level detection of bulk solids and liquids.

Typical applications are the detection of bulk solids in silos, bunkers and crushers as well as of liquids in pipelines and vessels.

The non-contact measuring principle has no direct contact with the medium and ensures continuous wear-free and maintenance free operation.
Features
  • Reliable Measurement Even with Very Abrasive Products
  • Separate Instrument Version Enables Mounting for Hardly Accessible Installation Locations
  • Reliable Measurement Even with Changing Product Properties
Close

Specifications

Brand

Ambient Temperature Range

  • -40° to 80° C (-40° to 176° F)

Approvals & Certifications

  • ATEX
  • CSA
  • FM
  • GOST
  • IEC

Consumption

  • 0.8 W, Max.

Enclosure, Body Material

  • Plastic
  • Stainless Steel or Aluminum

Environmental Protection

  • IP67

Hysteresis

  • 1.33 dB Approximately

Operating Voltages

  • 20-55 Vdc

Output

  • < 400 mA - Load Current
  • < 55 Vdc - Switching Voltage

Output Format

  • Relay Output
  • Transistor Output

Power Requirement

  • < 10 µA

Pressure Range

  • psig: -14.5 to 58 (kPa: -100 to 400, bar: -1 to 4)

Process Temperature

  • -40° to 450° C (-40° to 842° F) - Process Temperature with Mounting Adapter

Storage Temperature

  • -40° to 80° C (-40° to 176° F) - Storage & Transport Temperature

Voltage Drop

  • < 0.5 V - Voltage Loss

Wetted Materials

  • 316L Stainless Steel
  • PTFE
