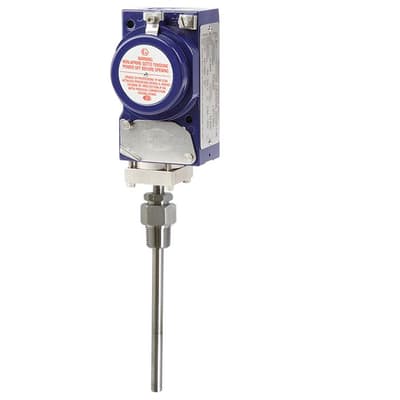

Compact Temperature Switch - TCA

Brand: WIKA Alexander Wiegand SE & Co. KG
These high-quality and robust temperature switches have been developed especially for safety-critical applications.

The high quality and the manufacturing of the product ensures reliable monitoring of your plant.

The manufacturer, Cella, is certified to ISO 9001. In production, the switch is monitored, step by step, through quality control software, and is subsequently 100 % tested.
Features
  • Case aluminium, epoxy resin coated
  • Ingress protection IP 65, NEMA 4
  • Ambient temperature -40 ... +85 °C
  • 1 switch point, SPDT or DPDT with a high contact rating of up to 15 A/AC 220 V
  • Capillary up to 10 m
These high-quality and robust temperature switches have been developed especially for safety-critical applications.

The high quality and the manufacturing of the product ensures reliable monitoring of your plant.

The manufacturer, Cella, is certified to ISO 9001. In production, the switch is monitored, step by step, through quality control software, and is subsequently 100 % tested.
Features
  • Case aluminium, epoxy resin coated
  • Ingress protection IP 65, NEMA 4
  • Ambient temperature -40 ... +85 °C
  • 1 switch point, SPDT or DPDT with a high contact rating of up to 15 A/AC 220 V
  • Capillary up to 10 m

Specifications

Switch Contact

  • SPDT DPDT

Certifications & Approvals

  • CE
  • IECEx
  • EAC
  • KOSHA
  • INMETRO
  • SIL

NACE & NIST

  • NACE

Applications

  • Temperature monitoring and direct switching of electrical loads
  • Control and regulation of industrial processes
  • Universally suitable for machine building, plant, vessel, apparatus construction and food industry, chemical industry, petrochemical industry
  • For measuring points with limited space
  • Ignition protection type GAS Ex-d Dust Ex-tD Gr. II Cat. 2 GD
