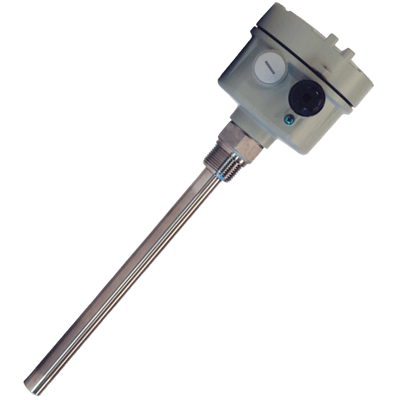

VBL Series Vibrating Level Sensor

Brand: Automation Products Group - APG
Request Information
The VBL Vibrating Level Sensor works well with solids of many types in medium and large sized hoppers. The VBL allows you to adjust the sensitivity setting to accurately detect the presence of different types of solids.
Features
  • Miniature Size
  • Simple torque adjustment
  • Reliable design
  • Low cost
The VBL Vibrating Level Sensor works well with solids of many types in medium and large sized hoppers. The VBL allows you to adjust the sensitivity setting to accurately detect the presence of different types of solids.
Features
  • Miniature Size
  • Simple torque adjustment
  • Reliable design
  • Low cost
Close
Close

Specifications

Brand

Electrical Connectors

  • 1/2” NPT Female

Enclosure, Body Material

  • 316 Stainless Steel
  • Aluminum Die Cast: IP65/NEMA 4
  • 304 Stainless Steel

Environmental Protection

  • IP65
  • NEMA 4

Operating Temperature

  • Housing: -40° to 60° C, -40° to 140° F
  • Rod: -40° to 80° C, -40° to 176° F

Output

  • 5 A at 250 Vac

Power Supply

  • ≤ 15 VA

Pressure Rating

  • 290 psi, 20 bar, 2000 kPa

Sensor, Probe Style

  • 10.83”, 275 mm

Supply Voltage

  • 20 - 250 VDC/VAC
  • 50/60 Hz

Switch Type

  • SPDT
