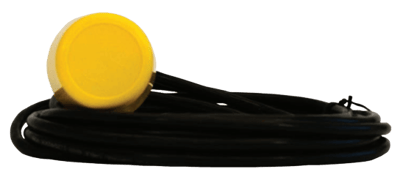

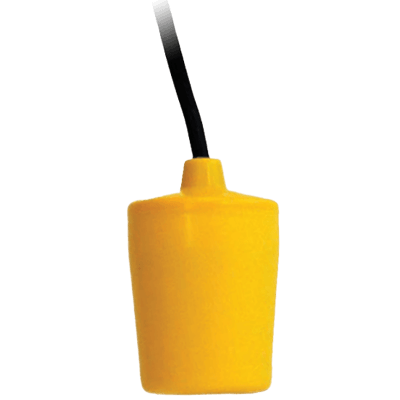

Images are representations only.
Description
Series TLS Cable Float Switches are dual-point switches that provide built-in hysteresis for better pump control. The switch operating levels are easily adjustable based on the cable weight location, and the floats are especially suited for use in waste water and sewage applications with low specific gravity.
Features- High and Low Level control
- Highly chemical resistant
- Proven reliability in operation
- Not sensitive to rotation
- Optional PVC cable weight
Configure
Specifications
Specifications
Switching Differential
- TLS-6A/B: 11” - 39”, 0.27m - 1m
- TLS-8A/B: 13” - 157”, 0.33m - 4 m
- TLS-6-B: 28° ±2°
Maximum Pressure
- TLS-6A/B: 29 psi, 2 bar
- TLS-8A/B: 29 psi, 2 bar
- TLS-6-B: 28 psi, 1.9 bar
Maximum Water Depth/Cable Length
- TLS-6A/B: 65.6 ft, 20 m
- TLS-8A/B: 65.6 ft, 20 m
- TLS-6-B: 19.7 ft, 6 m
Cable
- TLS-6A/B: 2/C 0.5mm², ~20 AWG
- TLS-8A/B: 2/C 0.75mm², ~18 AWG
- TLS-6-B: 2/C 1.25mm², ~16 AWG
Liquid Operating Temperature
- TLS-6A/B: 14°F to 122°F, -10°C to 50°C
- TLS-8A/B: 14°F to 122°F, -10°C to 50°C
- TLS-8A/B -T: 14°F to 158°F, -10°C to 70°C
- TLS-6-B: 32°F to 140°F, 0° to 60°C
Protection
- IP68
Minimum Specific Gravity
- TLS-6A/B: 0.7
- TLS-8A/B: 0.9
- TLS-6-B: 0.6
Voltage
- TLS-6A/B: Max. 300 VAC/VDC
- TLS-8A/B: Max. 300 VAC/VDC
- TLS-6-B: Max. 250 VAC/VDC
Current Rating
- TLS-6A/B: Max. 0.5 AC/DC
- TLS-8A/B: Max. 0.5 AC/DC
- TLS-6-B: Max 10 A @ 250VAC
Contact Rating
- TLS-6A/B: Max. 50 VA AC/50W DC
- TLS-8A/B: Max. 50 VA AC/50W DC
- TLS-6-B: Max 10 A @ 250VAC
- 50/60 Hz
Standard Cable Length
- 6m, 19.7 ft
Housing
- TLS-6A/B: Polypropylene with ABS Resin cap
- TLS-8A/B: ABS Resin
- TLS-6-B: Polypropylene
Cable Weight
- TLS-6A/B: Painted cast iron
- TLS-8A/B: Painted cast iron
- TLS-6-B: 1.1 lbs, 0.5 kg, Polypropylene
