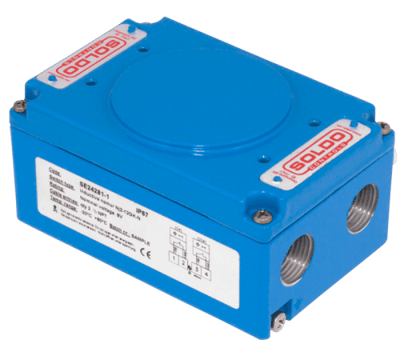

SE-ST Series Junction Box

Brand: Soldo Controls - by Rotork
Request Information
The SE - ST series junction box provides a compact design and heavy duty housing for remote electrical indication of linear valve/actuator position.

The wide variety of options make the SE/ST series perfect for use in IP65 weather proof. SOLDO has the flexibility and know how to offer an effective support whenever specific needs require the development of customized solutions.
Features
  • Weather Proof
    • IP65 weather proof enclosure.
  • Corrosion Resistant and Heavy Duty Housing
    • The SE/ST series junction boxes are manufactured in a heavy duty housing. The SE is made of die cast dichromated and polyester powder coated Aluminum. The ST series is made of 316 stainless steel.
  • Standardized Mounting
    • Housing conforms to international dimension standards ISO F05 bolt hole locations. A complete range of stainless steel mounting kit to fit SE on pneumatic actuators.
  • Junction Box Option
    • The SE/ST series can be provide with extra terminal strip to accommodate external solenoid valve and has two 1/2” npt cable entries (The SE also has the option of having an extra 2 cord grips or ½” npt hubs shown below). This feature provides a significant cost saving by eliminating the need for a separate junction box and associated labor. Cable entries have a 13 mm thread thickness. This feature prevents housing demage due to very heavy cables or cable glands.
  • Materials
    • SE Body and cover : die cast polyester powder coated Aluminum
    • ST Body and cover: 316 stainless steel (CF8M)
    • Fasteners : stainless steel
    • Seal : EPDM
  • Temperature Range
    • -20° to 80° C (32° to 176° F)
The SE - ST series junction box provides a compact design and heavy duty housing for remote electrical indication of linear valve/actuator position.

The wide variety of options make the SE/ST series perfect for use in IP65 weather proof. SOLDO has the flexibility and know how to offer an effective support whenever specific needs require the development of customized solutions.
Features
  • Weather Proof
    • IP65 weather proof enclosure.
  • Corrosion Resistant and Heavy Duty Housing
    • The SE/ST series junction boxes are manufactured in a heavy duty housing. The SE is made of die cast dichromated and polyester powder coated Aluminum. The ST series is made of 316 stainless steel.
  • Standardized Mounting
    • Housing conforms to international dimension standards ISO F05 bolt hole locations. A complete range of stainless steel mounting kit to fit SE on pneumatic actuators.
  • Junction Box Option
    • The SE/ST series can be provide with extra terminal strip to accommodate external solenoid valve and has two 1/2” npt cable entries (The SE also has the option of having an extra 2 cord grips or ½” npt hubs shown below). This feature provides a significant cost saving by eliminating the need for a separate junction box and associated labor. Cable entries have a 13 mm thread thickness. This feature prevents housing demage due to very heavy cables or cable glands.
  • Materials
    • SE Body and cover : die cast polyester powder coated Aluminum
    • ST Body and cover: 316 stainless steel (CF8M)
    • Fasteners : stainless steel
    • Seal : EPDM
  • Temperature Range
    • -20° to 80° C (32° to 176° F)
Close
Close

Specifications

Brand

Cable Entry

  • 1/2” NPT
  • M20
  • PG13.5

Conduit Connection

  • 1/2” NPT
  • Cord Grips: Left Side (1), Right Side (1), Both Sides (1+1)

Enclosure Finish

  • Blue RAL 5015
  • Electro-Polished

Enclosure, Body Material

  • Coated Aluminum

Environmental Protection

  • IP65
  • IP67M
  • IP68

Mounting

  • Stainless Steel

Process Temperature

  • -20° to 80° C (32° to 176° F)

Seat / Seal Material

  • EPDM

Applications

  • Rotary Valves

Cover Material

  • Aluminum

Approvals & Certifications

  • ATEX
  • CCOE
  • cULus
  • EAC
  • IECEx
  • SIL 3
