Capanivo - CN 8100 Capacitive Sensor

Brand: UWT GmbH
Application Area

The capacitance level detector Capanivo® 8100 is used in storage and process vessels as a full, demand and empty detector in all liquids.

Due to different probe versions, a suitable solution will be found for every installation setting.

A robust construction allows service at process temperatures up to +125 °C and a process overpressure up to 25 bar.
Features
  • Simple commissioning without adjustment to the medium
  • Adjustable hysteresis avoids unnecessary switching and thus increases the service life of the system
  • Reliable measurement results even with strongly adhering material
Application Area

The capacitance level detector Capanivo® 8100 is used in storage and process vessels as a full, demand and empty detector in all liquids.

Due to different probe versions, a suitable solution will be found for every installation setting.

A robust construction allows service at process temperatures up to +125 °C and a process overpressure up to 25 bar.
Features
  • Simple commissioning without adjustment to the medium
  • Adjustable hysteresis avoids unnecessary switching and thus increases the service life of the system
  • Reliable measurement results even with strongly adhering material

Specifications

Measurement Pprinciple

  • Capacitive

Measuring Task

  • Point Level Measurement
  • Interface Level Measurement

Version

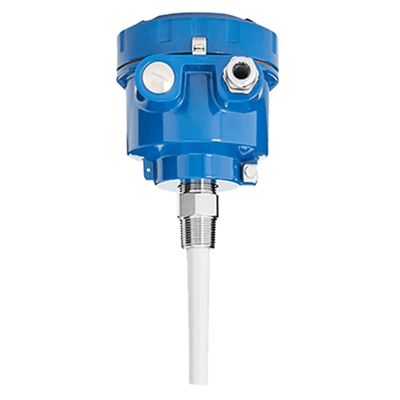

  • Compact Version

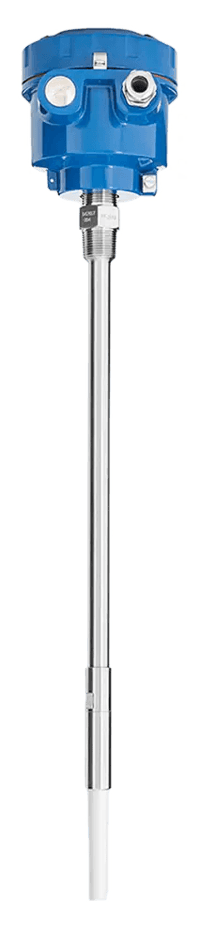

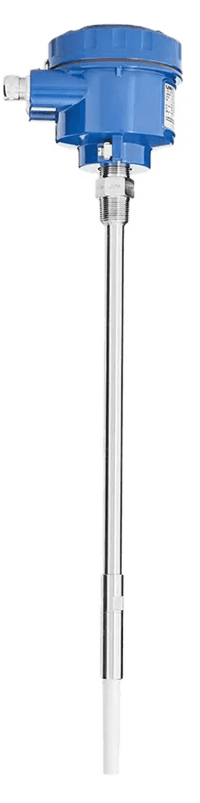

  • Pipe Extension

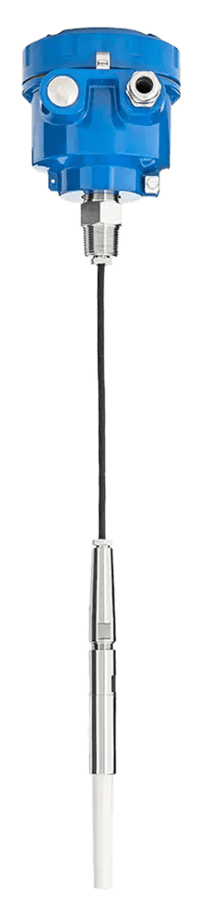

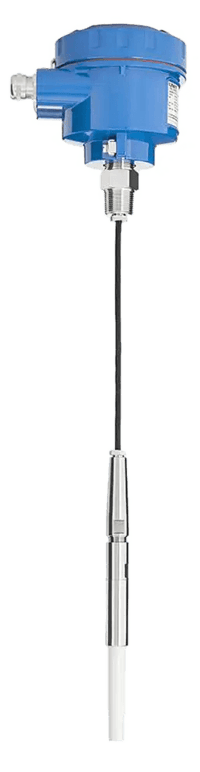

  • Cable Extension
  • Remote Version
  • Coated Version

Medium

  • Liquids

Mounting Position

  • Vertical
  • Horizontal
  • Angled
  • Out of Vessel

Ambient Temperature

  • -30°C … +85°C (-22 … +185°F)

Process Temperature

  • -40°C … +125°C (-40 … +257°F)

Process Pressure

  • -1 bar … +25 bar (-14.5 psi … +363 psi)

Minimum Sensitivity

  • DK ≥ 1.5

Housing Type

  • Flameproof

Housing Material

  • Aluminium

Housing Protection Rating

  • IP68, Type 4

Threaded Connection

  • ≥ G ¾"
  • ≥ R ¾"
  • ≥ NPT ¾"

Flange Connection

  • ≥ DN25 / ≥ 1"

Hygienic Fittings

  • ≥ Triclamp 1"

Wetted Materials

  • PPS
  • PVDF
  • Stainless Steel 1.4404 (316L)
  • FKM
  • FFKM
  • FEP

Mechanical Load

  • Cable: 1.75 kN

Minimum Immersion Length

  • Compact: 120 mm (4.72")
  • Pipe: 210 mm (8.3")
  • Cable: 500 mm (19.7")

Maximum Immersion Length

  • Pipe: 5.5 m (18')
  • Cable: 30 m (98.5')
  • Compact: 120 mm (4.72")

Power Supply

  • Universal Voltage: 12...250 VDC/ VAC
  • Digital Electronic: 12...30 VDC

Signal Output

  • Relay SPDT
  • Transistor
  • Profibus PA

Approvals

  • CE, General purpose, ATEX, INMETRO, FM, CSA

Explosion Protection

  • Intrinsic Safe (Ex i)
  • Dust Ignition-proof (Ex t)
  • Explosion Proof/ Flame Proof (Ex d)
  • Type of Protection n
  • Non-incendive

Hygienic / Pharma

  • EG 1935/2004
  • FDA

Ship Approval

  • Lloyd's

Overfill Protection

  • WHG

SIL Qualification

  • SIL 2

User Interface

  • DIP Switches + Potentiometer
  • LCD Display with Push Buttons
  • PACTware (DTM)

Optical Indicator

  • LED + Display

Adjustment Possibility

  • Adjustable Sensitivity
  • Adjustable Output Delay
  • Adjustable Switching Point
  • Adjustable Hysteresis
  • Switchable Logic (Fail Safe High - Fail Safe Low)

Applications

  • Chemicals
  • Power
  • Metal
  • Building, Cement & Quarry
  • Food & Beverage
