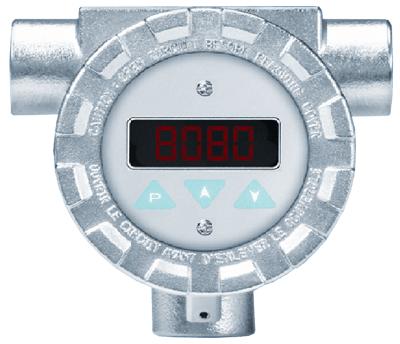

Model 9080MK Field Mounted Loop-Powered Indicator

Brand: International Metal Engineering (IME)
Request Information
IME Model 9080MK Indicators are designed for use in process industries where vibration, inclement weather and corrosive atmospheres prevail. The electronics are enclosed in a copper-free epoxy coated Aluminum housing and for more aggressive environments, a 316 stainless steel housing is optionally available. The housings meet the requirements of NEMA 4X and IP68, and are also certified Explosion-Proof by FM (US and CANADA) and ATEX/IECEx.
Features
  • 4-20 mA Input, loop-powered
  • 4-digit led display in engineering units
  • Choice of copper-free aluminum or 316 stainless steel dual compartment enclosure
  • Explosion-Proof certified
  • Wall or pipe mounting
IME Model 9080MK Indicators are designed for use in process industries where vibration, inclement weather and corrosive atmospheres prevail. The electronics are enclosed in a copper-free epoxy coated Aluminum housing and for more aggressive environments, a 316 stainless steel housing is optionally available. The housings meet the requirements of NEMA 4X and IP68, and are also certified Explosion-Proof by FM (US and CANADA) and ATEX/IECEx.
Features
  • 4-20 mA Input, loop-powered
  • 4-digit led display in engineering units
  • Choice of copper-free aluminum or 316 stainless steel dual compartment enclosure
  • Explosion-Proof certified
  • Wall or pipe mounting
Close
Close

Specifications

Brand

Accuracy

  • Indication Accuracy: 0.1 % of Calibrated Range ± 1-Digit

Approvals & Certifications

  • ATEX
  • CE
  • EX II 2 GD Ex d IIC T6 Gb Ex Tb IIIC T85° C Db IP68 Ta = -40° to 60° C
  • FM (C,US): Class I Division I Groups B, C, D, Class II/III Division I Groups E, F, G
  • IECEx d IIC T6 Gb Ex Tb IIIC T85° C Db IP68 Ta = -40° to 60° C

Calibration

  • Keyboad on the Front Panel

Conduit Connection

  • 1/2” NPT Female
  • 3/4” NPT Female
  • M20 x X1.5P
  • M25 x 1.5P

Current

  • 4-20 mA

Display

  • 4-Digit LED Display in Engineering Units
  • -999 to 9,999 with 4-20 mA Input Signal
  • Display Height: 0.4” (10 mm) High

Enclosure Finish

  • Electro-Polished
  • Epoxy Coated

Enclosure, Body Material

  • 316 Stainless Steel
  • Copper-Free Aluminum
  • Die Cast Aluminum

Environmental Protection

  • Explosion-proof
  • IP66
  • IP68
  • NEMA 4X

Input

  • 4-20 mA

Materials of Construction

  • Mounting Bracket: Stainless Steel

Mounting

  • 2” Pipe Mounting Bracket
  • Panel Mounting
  • Pipe
  • Wall Mounting

O-Ring Material

  • Buna-N (Nitrile)

Operating Temperature

  • -40° to 60° C (-40° to 140° F)

Response Time

  • 20 milliseconds (Typically)

Stability

  • Stability over Time: 0.1 % of Calibrated Range ± 1-Digit over 6 Months

Voltage Drop

  • 3.7 V at 20 mA
