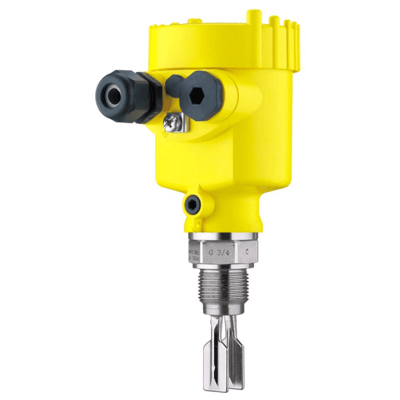

Vegaswing 61 Vibrating Level Switch

Brand: VEGA
Request Information
The Vegaswing 61 is used as a universal vibrating level switch for all liquids.

Independent of the mounting position, it detects reliably with millimetre accuracy the limit level.

The instrument can be used as empty or full detector, as approved overfill protection, dry run protection or pump protection in vessels and pipelines.

The Vegaswing 61 offers maximum reliability and safety in a wide application range.
Features
  • Minimum Time and Cost Expenditure Due to Simple Setup Without Medium
  • Precise and Reliable Function Due to Product-Independent Switching Point
  • Low Maintenance Costs
The Vegaswing 61 is used as a universal vibrating level switch for all liquids.

Independent of the mounting position, it detects reliably with millimetre accuracy the limit level.

The instrument can be used as empty or full detector, as approved overfill protection, dry run protection or pump protection in vessels and pipelines.

The Vegaswing 61 offers maximum reliability and safety in a wide application range.
Features
  • Minimum Time and Cost Expenditure Due to Simple Setup Without Medium
  • Precise and Reliable Function Due to Product-Independent Switching Point
  • Low Maintenance Costs
Close

Specifications

Brand

Ambient Temperature Range

  • -40° to 70° C (-40° to 158° F)

Applications

  • Can be used as Empty or Full Detector, as Approved Overfill Protection, Dry Run Protection or Pump Protection in Vessels & Pipelines
  • Detects Reliably with Millimetre Accuracy the Limit Level
  • Vibrating Level Switch for Liquids

Approvals & Certifications

  • ABS
  • ATEX
  • CSA
  • FM
  • GL
  • IEC
  • LRS
  • SIL

BSP Connection

  • G 3/4” Threads - Process Fitting

Cable Entry

  • M20 x 1.5

Connection Material

  • 316L Stainless Steel
  • ECTFE
  • Enamel
  • F53 Stainless Steel

Enclosure, Body Material

  • Aluminum
  • Plastic
  • Stainless Steel

Environmental Protection

  • IP67

Flange Size - 1” (DN 25)

  • 1” (DN 25) - Class 150 ASME
  • 1” (DN 25) - PN 40

Flange Size - 2” (DN 50)

  • 2” (DN 50) - Class 150 ASME
  • 2” (DN 50) - PN 40

Flange Type

  • Raised Face (RF)

Hysteresis

  • Approximately 0.08” (2 mm) with Vertical Installation

Mounting Position

  • Vertical Installation

NPT Connection

  • 3/4” NPT - Process Fitting

Operating Voltages

  • 20-253 Vac
  • 20-253 Vdc
  • 50/60 Hz

Output

  • 10-400 mA - Load Current

Output Format

  • Relay Output - Electronics Versions
  • Transistor Output - Electronics Versions

Output Function

  • NAMUR Output

Pressure Range

  • psig: -14.5 to 1.450 (kPa: -100 to 10,000, bar: -1 to 100)

Process Fitting Details

  • Hygienic Fittings
  • Slotted Nuts

Process Temperature

  • -50° to 250° C (-58° to 482° F)

Response Time

  • 500 milliseconds (ON/OFF) - Switching Delay

Seat / Seal Material

  • Klingersil C 4400 - Wetted Materials

Size

  • Clamp: 1”
  • Clamp: 2”

Supply Voltage

  • 10-36 Vdc

Version / Leadwires

  • 2-Wire Versions - Electronics Versions

Wetted Materials

  • 316L Stainless Steel
  • Alloy 400 (2.4360)
  • Alloy C-22 (2.4602)
  • ECTFE
  • Enamel Paint
