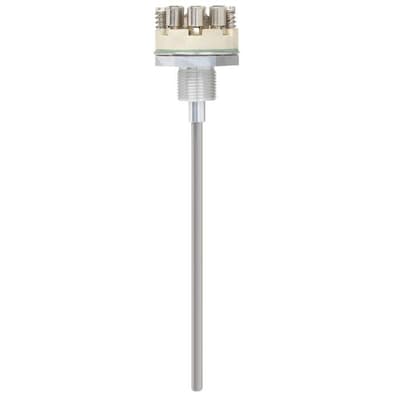

Measuring Insert for Resistance Thermometer - TR10-K

Brand: WIKA Alexander Wiegand SE & Co. KG
Request Information
The measuring inserts for resistance thermometers described here are designed for installation in a thermometer model TR10-L.

Operation without thermowell is appropriate only in special cases. The measuring insert is made of flexible, mineral-insulated sheathed cable.

The sensor is located in the tip of the measuring insert. The measuring inserts are delivered with pressure springs to ensure that the measuring inserts are pressed down to the thermowell bottom.
Features
  • Application ranges from -200 ... +600 °C (-328 ... +1,112 °F).
  • Made of mineral-insulated sheathed cable.
  • For all standard thermowell designs.
  • Spring-loaded design.
  • Explosion-protected versions.
The measuring inserts for resistance thermometers described here are designed for installation in a thermometer model TR10-L.

Operation without thermowell is appropriate only in special cases. The measuring insert is made of flexible, mineral-insulated sheathed cable.

The sensor is located in the tip of the measuring insert. The measuring inserts are delivered with pressure springs to ensure that the measuring inserts are pressed down to the thermowell bottom.
Features
  • Application ranges from -200 ... +600 °C (-328 ... +1,112 °F).
  • Made of mineral-insulated sheathed cable.
  • For all standard thermowell designs.
  • Spring-loaded design.
  • Explosion-protected versions.
Close

Specifications

Brand

Sensor Range

  • -196° to 600° C (-320° to 1,112° F)

Sheath Material

  • Stainless Steel

Certifications & Approvals

  • Uzstanda
  • UkrSEPRO
  • BelGIM
  • MTSCHS
  • KazInMetr
  • GOST
  • PESO
  • KOSHA
  • CCC
  • INMETRO
  • EAC
  • IECEx
  • CE
  • Ex Ukraine

Measuring Element

  • Pt100
  • 1 x / 2 x 2-Wire, 3-Wire, 4-Wire

Output

  • 4-20 mA HART
Close

Applications

  • Replacement measuring insert for servicing
