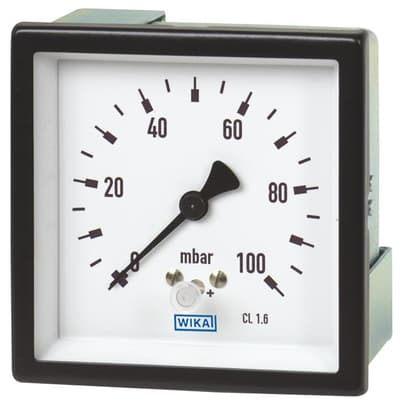

Capsule Pressure Gauge, Copper Alloy or Stainless Steel - 614.11, 634.11

Brand: WIKA Alexander Wiegand SE & Co. KG
Request Information
The model 614.11 and 634.11 capsule pressure gauges are based upon the proven capsule measuring system. The capsule measuring principle is particularly suitable for low pressures.

On pressurization, the expansion of the capsule element, proportional to the incident pressure, is transmitted to the movement and indicated.
Features
  • Low scale ranges from 0 ... 2.5 mbar.
  • Panel mounting.
  • Zero point setting in front.
The model 614.11 and 634.11 capsule pressure gauges are based upon the proven capsule measuring system. The capsule measuring principle is particularly suitable for low pressures.

On pressurization, the expansion of the capsule element, proportional to the incident pressure, is transmitted to the movement and indicated.
Features
  • Low scale ranges from 0 ... 2.5 mbar.
  • Panel mounting.
  • Zero point setting in front.
Close

Specifications

Brand

Design

  • DIN 43700

Nominal Size in mm

  • 72 x 72, 96 x 96, 144 x 144 and 144 x 72

Accuracy Class

  • 1.6

Pressure Limitation

  • Fluctuating: 0.9 x Full Scale Value
  • Steady: Full Scale Value

Permissible Temperature

  • Medium: +100° C Max.
  • Ambient: -20° to +60° C

Temperature Effect

  • When the temperature of the measuring system deviates from the reference temperature (+20° C): Max. ± 0.6 % / 10 K of Full Scale Value

Process Connection

  • NS 144 x 72: G 1/2 B (Male), SW 17
  • NS 144 x 144: G 1/2 B (Male), SW 22
  • NS 72 x 72 and 96 x 96: G 1/4 B (Male), SW 14
  • Back Mount
  • Model 634.11: Stainless Steel
  • Model 614.11: Copper Alloy

Pressure Element

  • Model 634.11: Stainless Steel
  • Model 614.11: Copper Alloy

Sealing

  • Model 634.11: Viton
  • Model 614.11: NBR

Movement

  • Copper Alloy, wear parts argentan, with zero adjustment

Dial

  • Aluminium, White, Black Lettering

Pointer

  • Aluminium, Black

Case (DIN 43700)

  • NS 144 x 72: Steel, Black
  • NS 72 x 72, 96 x 96, 144 x 144: Steel, Galvanised

Window

  • NS 144 x 72: Instrument Glass
  • NS 72 x 72, 96 x 96 and 144 x 144: Clear Non-splintering Plastic

Panel Frame (DIN 43718)

  • Steel, Black, narrow, Snap-fit
Close

Applications

  • For gaseous, dry and non-aggressive media that will not attack copper alloy parts
  • Model 614.11: Measuring system copper alloy
  • Model 634.11: Measuring system stainless steel, also for aggressive media
Close
