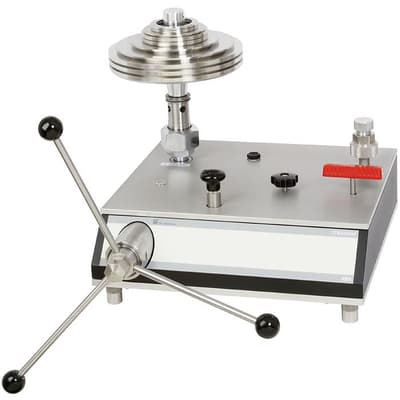

Images are representations only.
Description
Pressure balances (dead-weight testers) are the most accurate instruments available on the market for the calibration of electronic or mechanical pressure measuring instruments. The direct measurement of the pressure (p = F/A), as well as the use of high-quality materials enable a very small measurement uncertainty, in conjunction with an excellent long-term stability.
Features- Total measurement uncertainty to 0.02 % of reading.
- Factory calibration includes traceability to national standards, as standard; with DKD/DAkkS calibration possible as an option.
- High long-term stability with recommended recalibration cycle every five years.
- Masses manufactured from stainless steel and Aluminum, can be adjusted to local gravity.
Specifications
Specifications
Measuring Range
- 25 to 5,000 bar (350 to 70,000 psi)
Accuracy
- 0.025 % of Reading
- 0.02 % of Reading
Material of Construction
- Piston: Hardened Steel
- Cylinder: Tungsten carbide
- Piping in base: 1.4404 Stainless Steel
Operating Temperature
- 18° to 28° C (64° to 82° F)
Certifications & Approvals
- CE
- Uzstandard
- MTSCHS
Applications
Applications
- Primary standard for defining the pressure scale in a hydraulic range up to 5,000 bar (70,000 psi)
- Reference instrument for factory and calibration laboratories for the testing, adjustment and calibration of pressure measuring instruments
- Complete, stand-alone system, also suitable for on-site use
