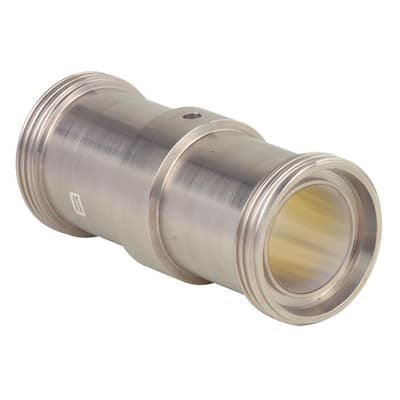

Model 981.18, 981.19, 981.20, 981.21 In Line Diaphragm Seal with Sterile Connection

Brand: WIKA Alexander Wiegand SE & Co. KG
Request Information
Diaphragm seals are used to protect the pressure measuring instrument from aggressive, adhesive, crystallising, corrosive, highly viscous, environmentally hazardous or toxic media.

A diaphragm made of the appropriate material provides for the separation from the medium to be measured. Thus even the most difficult measuring requirements can be met by combining measuring instruments with diaphragm seals.
Features
  • Completely round diaphragm (Europ. Pat. No. 0609846) to avoid dead spaces.
  • Self-draining in all mounting positions.
  • Quick measuring point cleaning without residues.
  • Suitable for SIP and CIP.
  • 3-A compliant.
Diaphragm seals are used to protect the pressure measuring instrument from aggressive, adhesive, crystallising, corrosive, highly viscous, environmentally hazardous or toxic media.

A diaphragm made of the appropriate material provides for the separation from the medium to be measured. Thus even the most difficult measuring requirements can be met by combining measuring instruments with diaphragm seals.
Features
  • Completely round diaphragm (Europ. Pat. No. 0609846) to avoid dead spaces.
  • Self-draining in all mounting positions.
  • Quick measuring point cleaning without residues.
  • Suitable for SIP and CIP.
  • 3-A compliant.
Close

Specifications

Brand

System Fillport

  • M6 System fillport

Instrument Connection

  • Capillary Connection
  • 1/4” NPT Female
  • 1/2” NPT Female

Gasket (To Process)

  • PTFE
  • NBR

Material, Wetted Parts

  • 316L Stainless Steel (1.4435)

Probe I/D

  • 3.189” (81.0 mm)_ Standard for DN 80
  • 2.598” (66.0 mm) Standard for DN 65
  • 1.969” (50.0 mm) Standard for DN 50
  • 1.496” (38.0 mm) Standard for DN 40
  • 1.024” (26.0 mm) Standard for DN 25

Process Connection

  • DN 25
  • DN 80
  • DN 65
  • DN 50
  • DN 40

Process Connection Style

  • Threaded Connection (Thread DIN 405) from C
  • Union Nut (Thread DIN 405) from D-F

INLINE™ Seal Design

  • INLINE™ Sanitary Diaphragm Seal DIN 11851
Close

Applications

  • For direct, quickly removable installation in pipelines
  • For flowing, pure media
  • Food and beverage production
  • For dairies, dairy products, breweries, soft drink production
