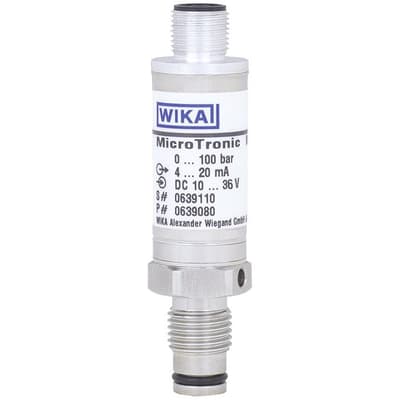

Miniature Pressure Sensor - M-10, M-11

Brand: WIKA Alexander Wiegand SE & Co. KG
Request Information
The model M-10 or M-11 pressure sensor is one of the thinnest and smallest industrial pressure sensors on the market. It therefore offers the ideal solution for applications where mounting space is limited.
Features
  • Measuring ranges from 0 ... 6 to 0 ... 1,000 bar.
  • Current and voltage outputs.
  • Ingress protection IP65 or IP67.
  • Wetted parts and case from stainless steel.
  • Vacuum-tight.
The model M-10 or M-11 pressure sensor is one of the thinnest and smallest industrial pressure sensors on the market. It therefore offers the ideal solution for applications where mounting space is limited.
Features
  • Measuring ranges from 0 ... 6 to 0 ... 1,000 bar.
  • Current and voltage outputs.
  • Ingress protection IP65 or IP67.
  • Wetted parts and case from stainless steel.
  • Vacuum-tight.
Close

Specifications

Brand

Certifications & Approvals

  • EAC
  • RoHS
  • CRN
  • Uzstandard
  • BelGIM
  • KazInMetr
  • KOSHA
  • cCSAus
  • GOST

Environmental Protection

  • IP67
  • IP65

Wetted Materials

  • 316Ti Stainless Steel

Case Material

  • 316Ti Stainless Steel

Seal Material

  • NBR
  • FPM/FKM

Process Conenction

  • 1/4” NPT
  • G 1/4 A
  • G 1/4” B
  • G 1/4” B flush

Permissible Temperature

  • -40° to 100° C (-40° to 212° F)

Measuring Range

  • 0 to 1,000 bar (0 to 15,000 psi)
Close

Applications

  • Machine Building
  • Hydraulics and Pneumatics
  • General Industrial Applications
