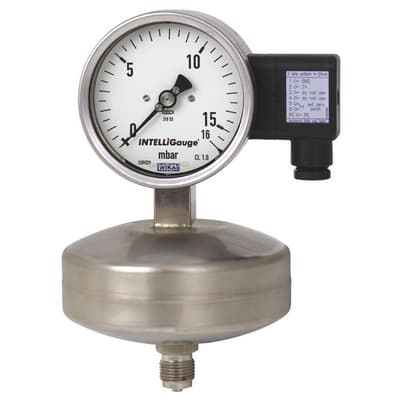

Capsule Pressure Gauge with Output Signal - PGT63HP.100, PGT63HP.160

Brand: WIKA Alexander Wiegand SE & Co. KG
Request Information
Wherever very low pressures have to be indicated locally and, at the same time, a signal transmission to the central control or remote centre is desired, the model PGT63HP intelliGAUGE® can be used.
Features
  • No configuration necessary due to "plug-and-play"
  • High overload safety up to 50 x full scale value
  • Easy-to-read analogue display with nominal sizes 100 and 160
  • Low measuring error and influence on function from medium pollution
  • Measuring chamber protected against unauthorised intervention
Wherever very low pressures have to be indicated locally and, at the same time, a signal transmission to the central control or remote centre is desired, the model PGT63HP intelliGAUGE® can be used.
Features
  • No configuration necessary due to "plug-and-play"
  • High overload safety up to 50 x full scale value
  • Easy-to-read analogue display with nominal sizes 100 and 160
  • Low measuring error and influence on function from medium pollution
  • Measuring chamber protected against unauthorised intervention
Close

Specifications

Brand

Nominal Size in mm

  • 100
  • 160

Accuracy Class

  • 1.6
  • Option: 1.0
  • Option: 0.6

Scale Ranges

  • 0 to 2.5 mbar to 0 to 100 mbar
  • other units e.g. psi, kPa available
  • Or all other equivalent vacuum or combined pressure and vacuum ranges

Scale

  • Option: Dual Scale
  • Single scale

Zero Point Setting

  • By means of Adjustment appliance

Pressure Limitation

  • Steady: Full Scale Value
  • Fluctuating: 0.9 x Full Scale Value

Overload Safety

  • 50 x Full Scale Value
  • Higher overload safety on Request

Process Connection with Lower Measuring Flange

  • M20 x 1.5 others on Request
  • 1/2” NPT
  • G 1/2 B

Permissible Temperature

  • Ambient: -20° to +60° C [-4° to 140° F]
  • Medium: +100° C [+212° F] Max.

Temperature Effect

  • When the temperature of the measuring system deviates from the reference temperature (+20° C): Max. ± 0.6 %/10 K of Full Scale Value

Case

  • Version S1 per EN 837: with blow-out device in Case back

Case Filling

  • Without

Wetted Materials

  • Sealing: PTFE
  • Process Connection, media chamber, capsule Element: Stainless Steel 316Ti

Non-Wetted Materials

  • Window: Laminated Safety Glass
  • Set Pointer Aluminium, Red
  • Instrument Pointer: Aluminium, Black
  • Dial: Aluminium, White, Black Lettering
  • Case, movement, bayonet Ring: Stainless Steel

Ingress Protection Per IEC / EN 60529

  • IP54

Mounting

  • Rigid Measuring line
  • Option: Instrument Mounting bracket for wall or pipe Mounting
  • Option: Mounting flange
Close

Applications

  • For gaseous, aggressive media, also in aggressive environments
  • Measurements of very low pressures from 2.5 mbar
  • Output signals 4 ... 20 mA, 0 ... 20 mA, DC 0 ... 10 V for the transmission of process values to the control room
