6900GZE Series Pressure Switch
Does not ship to OH, United States
Description

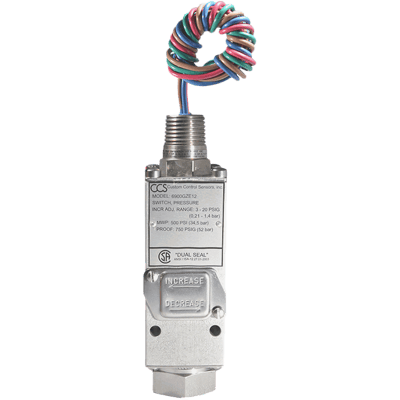

The hazardous locations CCS Dual-Snap 6900GZE Series is the most popular all-around gage pressure switch with a stainless steel port for corrosion resistance.
The series is UL/CSA explosion-proof, Class I, Groups A, B, C, and D, and Class II Groups E, F and G certified, and ATEX/IECEx II 2 G D Ex d IIC and Ex to IIIC. NEMA 4X and IP66 ratings are optimal for wet conditions.
It is designed with high vibration and shock resistance, utilizing Dual Snap® disc spring technology, ensuring high accuracy and repeatability. It comes with high over-pressure capabilities and is still relatively compact in size to conveniently mount on panels.
The 6900GZE series is ideal for gaseous and liquid media that are aggressive, highly viscous, or contaminated, even in harsh environments, thus meeting the demand for all commercial and industrial applicaitons.
Features- Adjustable Set Point Range
- Increasing
- psig 3 - 3400
- kPa 20.6 - 23,442.1
- bar 0.21 - 234
- Decreasing
- psig 1 - 3120
- kPa 6.89 - 21,511.6
- bar 0.07 - 215
- Increasing
- Deadband - Approximate: 2 - 280 psi, 0.14 - 19.3 bar
- System Pressure - Maximum: 500 - 5000 psig, 34.5 - 344.74 bar
- Proof Pressure: 750 - 7500 psig, 51.7 - 517.11 bar
- Wetted Material
- Pressure Port: 1/2"-14 Female NPT, 316 Stainless Steel
- Diaphragm: Stainless Steel
- O-Ring: Viton
- Relay: SPDT or DPDT
- UL, CSA
- Hazardous Area, Explosion-Proof
- Class I, Division 1, Groups A, B, C, D
- Hermetically Sealed Electrical Assembly
- Factory Sealed ( Epoxy Seal )
- Process Seal
- Dual Seal - ANSI / ISA - 12.27.01-2003
- Hazardous Area, Explosion-Proof
- Environmental Enclosure Rating
- IP65, IP66
- NEMA 4X Compliant
- CRN Approval: Canadian Registration Number - Safety Pressure Authority
- NACE Compliant: MR-0175 / ISO-15156
- SIL: Safety Integrity Level
- SIL 2, 61508 System in a Simplex Configuration
- SIL 3, 61508 System in a Voted Configuration
- CE Mark: EC Declaration of Conformity
Inventory
Displaying prices & availability for Ohio, United States in USD. Change location or currency.
Models matching criteria: 233
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton show more
- Adjustable Set Point Range
- Increasing
- psig 18 - 150
- kPa 124.2 - 1034.2
- bar 1.2 - 10.3
- Decreasing
- psig 6 - 138 psig
- kPa 41.4 - 951.4 kPa
- bar 0.41 - 9.5 bar
- Increasing
- Deadband - Approximate: 12 psi, 82.74 kPa, 0.8 bar
- System Pressure - Maximum: 1500 psig, 10,342.13 kPa, 103 bar
- Proof Pressure: 2000 psig, 13,789.51 kPa, 138 bar
- Wetted Materials
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Viton
- Relay: SPDT
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
- CRN, CE Mark, NACE
50+ In Stock
Does not ship to OH, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton show more
- Adjustable Set Point Range
- Increasing
- psig 700 - 2200
- kPa 4826.4 - 15,168.5
- bar 48.3 - 151.68
- Decreasing
- psig 520 - 2020
- kPa 3585.3 - 13,927
- bar 35.9 - 139
- Increasing
- Deadband - Approximate: 180 psi, 1241.06 kPa, 12.4 bar
- System Pressure - Maximum: 3000 psig, 20,684.27 kPa, 207 bar
- Proof Pressure: 4500 psig, 31,026.41 kPa, 310 bar
- Wetted Materials
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Viton
- Relay: SPDT
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
- CRN, CE Mark, NACE
50+ In Stock
Does not ship to OH, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton show more
- Adjustable Set Point Range
- Increasing
- psig 3 - 20
- kPa 20.7 - 137.8
- bar 0.21 - 1.4
- Decreasing
- psig 1 - 18
- kPa 6.9 - 124.1
- bar 0.07 - 1.2
- Increasing
- Deadband - Approximate: 2 psi, 13.79 kPa, 0.14 bar
- System Pressure - Maximum: 500 psig, 3447.38 kPa, 34.5 bar
- Proof Pressure: 750 psig, 5171.07 kPa, 51.7 bar
- Wetted Materials
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Viton
- Relay: SPDT
- UL, CSA
- Explosion-Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
- CE Mark, NACE
50+ In Stock
Does not ship to OH, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton show more
- Adjustable Set Point Range
- Increasing
- psig 9 - 75
- kPa 62.1 - 517.1
- bar 0.6 - 5.1
- Decreasing
- psig 3 - 69
- kPa 20.7 - 475.7
- bar 0.21 - 4.8
- Increasing
- Deadband - Approximate: 6 psi, 41.37 kPa, 0.41 bar
- System Pressure - Maximum: 500 psig, 3447.38 kPa, 34.5 bar
- Proof Pressure: 750 psi, 5171.07 kPa, 51.7 bar
- Wetted Materials
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Viton
- Relay: SPDT
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
- CE Mark, NACE
50+ In Stock
Does not ship to OH, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton show more
- Adjustable Set Point Range
- Increasing
- psig 45 - 375
- kPa 310.3 - 2585.5
- bar 3.1 - 25.9
- Decreasing
- psig 15 - 345
- kPa 103.5 - 2378.6
- bar 1.0 - 23.8
- Increasing
- Deadband - Approximate: 30 psi, 206.84 kPa, 2.0 bar
- System Pressure - Maximum: 1500 psig, 10,342.13 kPa, 103 bar
- Proof Pressure: 2000 psig, 13,789.51 kPa, 138 bar
- Wetted Materials
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Viton
- Relay: SPDT
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
- CRN, CE Mark, NACE
50+ In Stock
Does not ship to OH, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton show more
- Adjustable Set Point Range
- Increasing
- psig 300 - 1000
- kPa 2068.5 - 6894.7
- bar 20.7 - 68.9
- Decreasing
- psig 225 - 925
- kPa 1551.4 - 6377.6
- bar 15.5 - 63.7
- Increasing
- Deadband - Approximate: 75 psi, 517.11 kPa, 5.1 bar
- System Pressure - Maximum: 2000 psig, 13,789.51 kPa, 138 bar
- Proof Pressure: 3000 psig, 20,684.27 kPa, 207 bar
- Wetted Materials
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Viton
- Relay: SPDT
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
- CRN, CE Mark, NACE
50+ In Stock
Does not ship to OH, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton show more
- Adjustable Set Point Range
- Increasing
- psig 1800 - 3400
- kPa 12,410.6 - 23,442.15
- bar 124 - 234
- Decreasing
- psig 1520 - 3120
- kPa 10,480.0 - 21,511.6
- bar 105 - 215
- Increasing
- Deadband - Approximate: 280 psi, 1930.5 kPa, 19.3 bar
- System Pressure - Maximum: 5000 psig, 34,473.75 kPa, 345 bar
- Proof Pressure: 7500 psig, 51,710.63 kPa, 517 bar
- Wetted Materials
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Viton
- Relay: SPDT
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
- CRN, CE Mark, NACE
50+ In Stock
Does not ship to OH, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton, DPDT show more
- Adjustable Set Point Range
- Increasing
- psig 45 - 375
- kPa 310.3 - 2585.5
- bar 3.1 - 25.9
- Decreasing
- psig 15 - 345
- kPa 103.5 - 2378.6
- bar 1.0 - 23.8
- Increasing
- Deadband - Approximate: 30 psi, 206.84 kPa, 2.0 bar
- System Pressure - Maximum: 1500 psig, 10,342.13 kPa, 103 bar
- Proof Pressure: 2000 psig, 13,789.51 kPa, 138 bar
- Wetted Materials
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Viton
- Relay: DPDT
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
- CRN, CE Mark, NACE
2 In Stock
Does not ship to OH, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Welded Capsule show more
- Adjustable Set Point Range
- Increasing
- psig 3 - 20
- kPa 20.7 - 137.8
- bar 0.21 - 1.4
- Decreasing
- psig 1 - 18
- kPa 6.9 - 124.1
- bar 0.07 - 1.2
- Increasing
- Deadband - Approximate: 2 psi, 13.79 kPa, 0.14 bar
- System Pressure - Maximum: 500 psig, 3447.38 kPa, 34.5 bar
- Proof Pressure: 750 psig, 5171.07 kPa, 51.7 bar
- Wetted Materials
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel Welded Capsule
- Relay: SPDT
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- CE Mark, NACE, CRN
Contact for Inventory
Does not ship to OH, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Welded Capsule show more
- Adjustable Set Point Range
- Increasing
- psig 9 - 75
- kPa 62.1 - 517.1
- bar 0.6 - 5.1
- Decreasing
- psig 3 - 69
- kPa 20.7 - 475.7
- bar 0.21 - 4.8
- Increasing
- Deadband - Approximate: 6 psi, 41.4 kPa, 0.41 bar
- System Pressure - Maximum: 500 psig, 3447.38 kPa, 34.5 bar
- Proof Pressure: 750 psig, 5171.07 kPa, 51.7 bar
- Wetted Materials
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel Welded Capsule
- Relay: SPDT
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- CE Mark, NACE, CRN
Contact for Inventory
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Welded Capsule show more
- Adjustable Set Point Range:
- Increasing: 45 to 375 psig, 310.3 to 2586 kPa, 3.1 to 25.9 bar
- Decreasing: 15 to 345 psig, 103.4 to 2379 kPa, 1.0 to 23.8 bar
- Deadband: Approximately 30 psi, 206.9 kPa, 2.0 bar
- System Pressure (Maximum): 1500 psig, 10342.13 kPa, 103 bar
- Proof Pressure: 2000 psig, 13789.51 kPa, 138 bar
- Wetted Materials:
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel Welded Capsule
- Relay: SPDT
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- CE Mark, NACE, CRN
18 - 20 weeks
Does not ship to OH, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Welded Capsule show more
- Adjustable Set Point Range
- Increasing
- psig 1800 - 3400
- kPa 12,410.6 - 23,442.2
- bar 124 - 234
- Decreasing
- psig 1520 - 3120
- kPa 10,480.0 - 21,511.6
- bar 105 - 215
- Increasing
- Deadband - Approximate: 280 psi, 1930.5 kPa, 19.3 bar
- System Pressure - Maximum: 5000 psig, 34,473.8 kPa, 345 bar
- Proof Pressure: 7500 psig, 51,710.7 kPa, 517 bar
- Wetted Materials
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel Welded Capsule
- Relay: SPDT
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- CE Mark, NACE, CRN
Contact for Inventory
Does not ship to OH, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton, DPDT show more
- Adjustable Set Point Range
- Increasing
- psig 18 - 150
- kPa 124.2 - 1034.2
- bar 1.2 - 10.3
- Decreasing
- psig 6 - 138
- kPa 41.4 - 951.4
- bar 0.41 - 9.5
- Increasing
- Deadband - Approximate: 12 psi, 82.74 kPa, 0.8 bar
- System Pressure - Maximum: 1500 psig, 10,342.14 kPa, 103 bar
- Proof Pressure: 2000 psig, 13,789.51 kPa, 138 bar
- Wetted Materials
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Viton
- Relay: DPDT
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
- CRN, CE Mark, NACE
28 - 35 weeks
Does not ship to OH, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton, DPDT show more
- Adjustable Set Point Range
- Increasing
- psig 300 - 1000
- kPa 2068.5 - 6894.7
- bar 20.7 - 68.9
- Decreasing
- psig 225 - 925
- kPa 1551.4 - 6377.6
- bar 15.5 - 63.7
- Increasing
- Deadband - Approximate: 75 psi, 517.11 kPa, 5.1 bar
- System Pressure - Maximum: 2000 psig, 13,789.51 kPa, 138 bar
- Proof Pressure: 3000 psig, 20,684.27 kPa, 207 bar
- Wetted Materials
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Viton
- Relay: DPDT
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
- CRN, CE Mark, NACE
28 - 35 weeks
Does not ship to OH, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton, DPDT show more
- Adjustable Set Point Range
- Increasing
- psig 700 - 2200
- kPa 4826.4 - 15,168
- bar 48.3 - 152
- Decreasing
- psig 520 - 2020
- kPa 3585.3 - 13,927
- bar 35.9 - 139
- Increasing
- Deadband - Approximate: 180 psi, 1241.06 kPa, 12.4 bar
- System Pressure - Maximum: 3000 psig, 20,684.27 kPa, 207 bar
- Proof Pressure: 4500 psig, 31,026.41 kPa, 310 bar
- Wetted Materials
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Viton
- Relay: DPDT
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
- CRN, CE Mark, NACE
25 - 27 weeks
Does not ship to OH, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton, Teflon Leads show more
- Adjustable Set Point Range:
- Increasing: 3 to 20 psig, 20.7 to 137.8 kPa, 0.21 to 1.4 bar
- Decreasing: 1 to 18 psig, 6.9 to 124.1 kPa, 0.069 to 1.2 bar
- Deadband: Approximately 2 psi, 13.89 kPa, 0.14 bar
- System Pressure (Maximum): 500 psi, 3447.38 kPa, 34.5 bar
- Proof Pressure: 750 psi, 5171.07 kPa, 51.7 bar
- Wetted Materials:
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Viton
- Wire: Teflon
- Relay: SPDT
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
- CE Mark, NACE, CRN
Contact For Inventory
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Welded Capsule show more
- Adjustable Set Point Range
- Increasing
- psig 700 - 2200
- kPa 4826.4 - 15,172.4
- bar 48.3 - 152
- Decreasing
- psig 520 - 2020
- kPa 3586.2 - 13,931.0
- bar 35.9 - 139
- Increasing
- Deadband - Approximate: 180 psi, 1255.2 kPa, 12.4 bar
- System Pressure - Maximum: 3000 psig, 20,684.27 kPa, 207 bar
- Proof Pressure: 4500 psig, 31,026.41 kPa, 310 bar
- Wetted Materials
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel Welded Capsule
- Relay: SPDT
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- CRN, NACE, CE Mark
28 - 35 weeks
Does not ship to OH, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Welded Capsule show more
- Adjustable Set Point Range:
- Increasing: 300 to 1000 psig, 2068.5 to 6894.7 kPa, 20.7 to 68.9 bar
- Decreasing: 225 to 925 psig, 1551.7 to 6379.3 kPa, 15.5 to 64 bar
- Deadband: Approximately 75 psi, 517.2 kPa, 5.1 bar
- System Pressure (Maximum): 2000 psig, 13789.51 kPa, 138 bar
- Proof Pressure: 3000 psig, 20684.27 kPa, 207 bar
- Wetted Materials:
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel Welded Capsule
- Relay: SPDT
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- CRN, NACE, CE Mark
28 - 35 weeks
Does not ship to OH, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton, DPDT show more
- Adjustable Set Point Range
- Increasing
- psig 9 - 75
- kPa 62.1 - 517.1
- bar 0.6 - 5.1
- Decreasing
- psig 3 - 69
- kPa 20.7 - 475.7
- bar 0.21 - 4.8
- Increasing
- Deadband - Approximate: 6 psi, 41.37 kPa, 0.41 bar
- System Pressure - Maximum: 500 psig, 3447.38 kPa, 34.5 bar
- Proof Pressure: 750 psig, 5171.07 kPa, 51.7 bar
- Wetted Materials
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Viton
- Relay: DPDT
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
- CRN, CE Mark, NACE
28 - 35 weeks
Does not ship to OH, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton, TeflonLeads,DPDT show more
- Adjustable Set Point Range:
- Increasing: 700 to 2200 psig, 4826.4 to 15168 kPa, 48.3 to 152 bar
- Decreasing: 520 to 2020 psig, 3585.3 to 13927 kPa, 35.9 to 139 bar
- Deadband: Approximately 180 psi, 1241.06 kPa, 12.4 bar
- System Pressure (Maximum): 3000 psig, 20684.27 kPa, 207 bar
- Proof Pressure: 4500 psig, 31026.41 kPa, 310 bar
- Wetted Materials:
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Viton
- Wire: Teflon
- Relay: DPDT
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
- CRN, CE Mark, NACE
28 - 35 weeks
Does not ship to OH, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton, DPDT show more
- Adjustable Set Point Range
- Increasing
- psig 3 - 20
- kPa 20.7 - 137.8
- bar 0.21 - 1.4
- Decreasing
- psig 1 - 18
- kPa 6.9 - 124.1
- bar 0.07 - 1.2
- Increasing
- Deadband - Approximate: 2 psi, 13.79 kPa, 0.14 bar
- System Pressure - Maximum: 500 psig, 3447.38 kPa, 34.5 bar
- Proof Pressure: 750 psig, 5171.07 kPa, 51.7 bar
- Wetted Materials
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Viton
- Relay: DPDT
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
- CRN, CE Mark, NACE
28 - 35 weeks
Does not ship to OH, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Welded Capsule show more
- Adjustable Set Point Range
- Increasing
- psig 18 - 150
- kPa 124.2 - 1034.2
- bar 1.2 - 10.3
- Decreasing
- psig 6 - 138
- kPa 41.4 - 951.4
- bar 0.41 - 9.5
- Increasing
- Deadband - Approximate: 12 psi, 82.74 kPa, 0.8 bar
- System Pressure - Maximum: 1500 psig, 10,342.13 kPa, 103 bar
- Proof Pressure: 2000 psig, 13,789.51 kPa, 138 bar
- Wetted Materials
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel Welded Capsule
- Relay: SPDT
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
- CRN, CE Mark, NACE
28 - 35 weeks
Does not ship to OH, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton, Gold Contacts show more
- Adjustable Set Point Range:
- Increasing: 9 to 75 psig, 62.1 to 517.1 kPa, 0.6 to 5.1 bar
- Decreasing: 3 to 69 psig, 20.7 to 475.7 kPa, 0.21 to 4.8 bar
- Deadband: Approximately 6 psi, 41.37 kPa, 0.41 bar
- System Pressure (Maximum): 500 psig, 3447.38 kPa, 34.5 bar
- Proof Pressure: 750 psi, 5171.07 kPa, 51.7 bar
- Wetted Materials:
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Viton
- Relay: SPDT
- Contacts: Gold
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
- CRN, CE Mark, NACE
28 - 35 weeks
Does not ship to OH, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton, ATEX/GOST show more
- Adjustable Set Point Range:
- Increasing: 9 to 75 psig, 62.1 to 517.1 kPa, 0.6 to 5.1 bar
- Decreasing: 3 to 69 psig, 20.7 to 475.7 kPa, 0.21 to 4.8 bar
- Deadband: Approximately 6 psi, 41.37 kPa, 0.41 bar
- System Pressure (Maximum): 500 psig, 3447.38 kPa, 34.5 bar
- Proof Pressure: 750 psig, 5171.07 kPa, 51.7 bar
- Wetted Materials:
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Viton
- Relay: SPDT
- ATEX
- ATEX Certified For Potentially Explosive Atmospheres Electrical Assembly Series
- 46-XXXXXXX, Models 6*****, Ex d IIC T6, Directive 94/9/EC Sira #08ATEX 1046X (Option Y)
- IECEx - SIRA Certified, SIR 10,0193X (Option Y)
- CE Mark, NACE, CRN
28 - 35 weeks
Does not ship to OH, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Teflon show more
- Adjustable Set Point Range:
- Increasing: 9 to 75 psig, 62.1 to 517.1 kPa, 0.6 to 5.1 bar
- Decreasing: 3 to 69 psig, 20.7 to 475.7 kPa, 0.21 to 4.8 bar
- Deadband: Approximately 6 psi, 41.37 kPa, 0.41 bar
- System Pressure (Maximum): 500 psig, 3447.38 kPa, 34.5 bar
- Proof Pressure: 750 psig, 5171.07 kPa, 51.7 bar
- Wetted Materials:
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Teflon
- Relay: SPDT
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
- CRN, CE Mark, NACE
28 - 35 weeks
Does not ship to OH, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Welded Capsule, Teflon show more
- Adjustable Set Point Range:
- Increasing: 3 to 20 psig, 20.7 to 137.8 kPa, 0.21 to 1.4 bar
- Decreasing: 1 to 18 psig, 6.9 to 124.1 kPa, 0.07 to 1.2 bar
- Deadband: Approximately 2 psi, 13.79 kPa, 0.14 bar
- System Pressure (Maximum): 500 psig, 3447.38 kPa, 34.5 bar
- Proof Pressure: 750 psig, 5171.07 kPa, 51.7 bar
- Wetted Materials:
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel Welded Capsule
- Relay: SPDT
- 18 Inch Teflon Free Leads
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
- CRN, CE Mark, NACE
28 - 35 weeks
Does not ship to OH, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Teflon show more
- Adjustable Set Point Range:
- Increasing: 45 to 375 psig, 310.3 to 2585.5 kPa, 3.1 to 25.9 bar
- Decreasing: 15 to 345 psig, 103.5 to 2378.6 kPa, 1.0 to 23.8 bar
- Deadband: Approximately 30 psi, 206.84 kPa, 2.0 bar
- System Pressure (Maximum): 1500 psig, 10342.14 kPa, 103 bar
- Proof Pressure: 2000 psig, 13789.51 kPa, 138 bar
- Wetted Materials:
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Teflon
- Relay: SPDT
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
- CRN, CE Mark, NACE
Contact For Inventory
Does not ship to OH, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton, Gold Contacts show more
- Adjustable Set Point Range:
- Increasing: 3 to 20 psig, 20.7 to 137.8 kPa, 0.21 to 1.4 bar
- Decreasing: 1 to 18 psig, 6.9 to 124.1 kPa, 0.07 to 1.2 bar
- Deadband: Approximately 2 psi, 13.79 kPa, 0.14 bar
- System Pressure (Maximum): 500 psig, 3447.38 kPa, 34.5 bar
- Proof Pressure: 750 psig, 5171.07 kPa, 51.7 bar
- Wetted Materials:
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Viton
- Relay: SPDT
- Contacts: Gold
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
- CE Mark, NACE, CRN
28 - 35 weeks
Does not ship to OH, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton,2 Meter Free Leads show more
- Adjustable Set Point Range:
- Increasing: 18 to 150 psig, 124.2 to 1034.2 kPa, 1.2 to 10.3 bar
- Decreasing: 6 to 138 psig, 41.4 to 951.4 kPa, 0.41 to 9.5 bar
- Deadband: Approximately 12 psi, 82.74 kPa, 0.8 bar
- System Pressure (Maximum): 1500 psig, 10342.13 kPa, 103 bar
- Proof Pressure: 2000 psig, 13789.51 kPa, 138 bar
- Wetted Materials:
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Viton
- Relay: SPDT
- Comes With 2 Meter Free Leads
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
- CRN, CE Mark, NACE
28 - 35 weeks
Does not ship to OH, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Special Range show more
GENERAL DESCRIPTION:
SPECIAL RANGE, DEADBAND,
& 5 FT FREE LEADS
NAMEPLATE DATA:
INCR ADJ RANGE: 70-120 PSIG
D/B: 6 PSI MAX
PROOF: 750 PSIG
ELEC RATINGS: STD
28 - 35 weeks
Does not ship to OH, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Buna-N, SPDT show more
- Adjustable Set Point Range:
- Increasing: 3 to 20 psig, 20.7 to 137.8 kPa, 0.21 to 1.4 bar
- Decreasing: 1 to 18 psig, 6.9 to 124.1 kPa, 0.07 to 1.2 bar
- Deadband: Approximately 2 psi, 13.79 kPa, 0.14 bar
- System Pressure (Maximum): 500 psig, 3447.38 kPa, 34.5 bar
- Proof Pressure: 750 psig, 5171.07 kPa, 51.7 bar
- Wetted Materials:
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Buna-N
- Relay: SPDT
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
- CRN, CE Mark, NACE
28 - 35 weeks
Does not ship to OH, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Buna-N, SPDT show more
- Adjustable Set Point Range:
- Increasing: 9 to 75 psig, 62.1 to 517.1 kPa, 0.6 to 5.1 bar
- Decreasing: 3 to 69 psig, 20.7 to 475.7 kPa, 0.21 to 4.8 bar
- Deadband: Approximately 6 psi, 41.37 kPa, 0.41 bar
- System Pressure (Maximum): 500 psig, 3447.38 kPa, 34.5 bar
- Proof Pressure: 750 psi, 5171.07 kPa, 51.7 bar
- Wetted Materials:
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Buna-N
- Relay: SPDT
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
- CRN, CE Mark, NACE
28 - 35 weeks
Does not ship to OH, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Teflon show more
- Adjustable Set Point Range:
- Increasing: 3 to 20 psig, 20.7 to 137.8 kPa, 0.21 to 1.4 bar
- Decreasing: 1 to 18 psig, 6.9 to 124.1 kPa, 0.07 to 1.2 bar
- Deadband: Approximately 2 psi, 13.79 kPa, 0.14 bar
- System Pressure (Maximum): 500 psig, 3447.38 kPa, 34.5 bar
- Proof Pressure: 750 psig, 5171.07 kPa, 51.7 bar
- Wetted Materials:
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Teflon
- Relay: SPDT
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
- CRN, CE Mark, NACE
28 - 35 weeks
Does not ship to OH, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Teflon show more
- Adjustable Set Point Range:
- Increasing: 300 to 1000 psig, 2068.5 to 6894.7 kPa, 20.7 to 68.9 bar
- Decreasing: 225 to 925 psig, 1551.4 to 6377.6 kPa, 15.5 to 63.7 bar
- Deadband: Approximately 75 psi, 517.11 kPa, 5.1 bar
- System Pressure (Maximum): 2000 psig, 13789.51 kPa, 138 bar
- Proof Pressure: 3000 psig, 20684.27 kPa, 207 bar
- Wetted Materials:
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Teflon
- Relay: SPDT
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
- CRN, CE Mark, NACE
28 - 35 weeks
Does not ship to OH, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Teflon show more
- Adjustable Set Point Range:
- Increasing: 700 to 2500 psig, 4826.4 to 17236.8 kPa, 48.3 to 172 bar
- Decreasing: 520 to 2320 psig, 3585.3 to 15995.8 kPa, 35.9 to 160 bar
- Deadband: Approximately 180 psi, 1241.06 kPa, 12.4 bar
- System Pressure (Maximum): 3000 psig, 20684.27 kPa, 207 bar
- Proof Pressure: 4500 psig, 31026.41 kPa, 310 bar
- Wetted Materials:
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Teflon
- Wire: 18" free leads
- Relay: SPDT
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
- CRN, CE Mark, NACE
28 - 35 weeks
Does not ship to OH, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton, ATEX/GOST show more
- Adjustable Set Point Range:
- Increasing: 3 to 20 psig, 20.7 to 137.8 kPa, 0.21 to 1.4 bar
- Decreasing: 1 to 18 psig, 6.9 to 124.1 kPa, 0.07 to 1.2 bar
- Deadband: Approximately 2 psi, 13.79 kPa, 0.14 bar
- System Pressure (Maximum): 500 psig, 3447.38 kPa, 34.5 bar
- Proof Pressure: 750 psig, 5171.07 kPa, 51.7 bar
- Wetted Materials:
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Viton
- Relay: SPDT
- ATEX
- ATEX Certified For Potentially Explosive Atmospheres Electrical Assembly Series
- 46-XXXXXXX, Models 6*****, Ex d IIC T6, Directive 94/9/EC Sira #08ATEX 1046X (Option Y)
- IECEx - SIRA Certified, SIR 10,0193X (Option Y)
- CE Mark, NACE, CRN
28 - 35 weeks
Does not ship to OH, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton, ATEX/GOST show more
- Adjustable Set Point Range:
- Increasing: 18 to 150 psig, 124.2 to 1034.2 kPa, 1.2 to 10.3 bar
- Decreasing: 6 to 138 psig, 41.4 to 951.5 kPa, 0.41 to 9.5 bar
- Deadband: Approximately 12 psi, 82.74 kPa, 0.8 bar
- System Pressure (Maximum): 1500 psig, 10342.13 kPa, 103 bar
- Proof Pressure: 2000 psig, 13789.51 kPa, 138 bar
- Wetted Materials:
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Viton
- Relay: SPDT
- ATEX
- ATEX Certified For Potentially Explosive Atmospheres Electrical Assembly Series
- 46-XXXXXXX, Models 6*****, Ex d IIC T6, Directive 94/9/EC Sira #08ATEX 1046X (Option Y)
- IECEx - SIRA Certified, SIR 10,0193X (Option Y)
- CE Mark, NACE, CRN
28 - 35 weeks
Does not ship to OH, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton, ATEX/GOST show more
- Adjustable Set Point Range:
- Increasing: 45 to 375 psig, 310.3 to 2585.5 kPa, 3.1 to 25.9 bar
- Decreasing: 15 to 345 psig, 103.5 to 2378.6 kPa, 1.0 to 23.8 bar
- Deadband: Approximately 30 psi, 206.84 kPa, 2.0 bar
- System Pressure (Maximum): 1500 psig, 10342.14 kPa, 103 bar
- Proof Pressure: 2000 psig, 13789.51 kPa, 138 bar
- Wetted Materials:
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Viton
- Relay: SPDT
- ATEX
- ATEX Certified For Potentially Explosive Atmospheres Electrical Assembly Series
- 46-XXXXXXX, Models 6*****, Ex d IIC T6, Directive 94/9/EC Sira #08ATEX 1046X (Option Y)
- IECEx - SIRA Certified, SIR 10,0193X (Option Y)
- CE Mark, NACE, CRN
28 - 35 weeks
Does not ship to OH, United States
CCS DUAL-SNAP Electrical Assembly, 611/6900/674 Series, All Ranges, SPDT, Haz. Area
Contact For Inventory
Does not ship to OH, United States
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/2" NPT SST Port & Diaphragm, EPDM, DPDT, show more
- Adjustable Set Point Range:
- Increasing: 700 to 2200 psig, 4826.4 to 15168 kPa, 48.3 to 152 bar
- Decreasing: 520 to 2020 psig, 3585.3 to 13927 kPa, 35.9 to 139 bar
- Deadband: Approximately 180 psi, 1241.06 kPa, 12.4 bar
- System Pressure (Maximum): 3000 psig, 20684.27 kPa, 207 bar
- Proof Pressure: 4500 psig, 31026.41 kPa, 310 bar
- Wetted Materials:
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: EPDM
- Relay: DPDT
- UL, CSA
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- Dual Seal - ANSI/ISA - 12.27.01-2003
- CRN, CE Mark, NACE
28 - 35 weeks
Does not ship to OH, United States
Configure
Specifications
Specifications
Set Point Range - Increasing
- psig: 3 - 3400
- kPa: 20.7 - 23,442
- bar: 0.21 - 234
Set Point Range - Decreasing
- psig: 1 - 3120
- kPa: 6.9 - 21,512
- bar: 0.07 - 215
Deadband, Approximate
- psi: 2 - 280
- kPa: 13.8 - 1931
- bar: 0.14 - 19.3
System Pressure
- psig: 500 - 3000
- kPa: 3447 - 20,684
- bar: 34.5 - 207
Proof Pressure
- psig: 750 - 4500
- kPa: 5171 - 31,026
- bar: 51.7 - 310
Electrical Rating
- 1 A at 125 Vac, 50/60 Hz
- 11 A at 125/250 Vac
Operating Temperature
- -40° to 86° C
- -40° to 187° F
Switch Type
- SPDT
- DPDT
NPT Connection
- 1/2” NPT Female Welded Diaphragm - Internal with Port Cavity
Process Connection Material
- 316 Stainless Steel
- Hastelloy C-276
- Monel
Diaphragm Material
- Hastelloy C-276
- Monel
- Stainless Steel
O-Ring Material
- Ethylene Propylene (EPR)
- Viton
- None
Enclosure, Body Material
- Stainless Steel
- Aluminum
Approvals & Certifications
- CSA
- cUL
- UL
- Dual Seal
- CRN - Alberta
- CRN - British Columbia
- CRN - Saskatchewan
- CRN - Manitoba
- CRN - N.W. Territories
- ATEX
- CE
- IEC Ex
- LVD
- PED
- RoHS
- RTN
Electrical Certification
- c-UL, UL/CSA Explosion-proof: Div. 1, 2 Hermetically Sealed Electrical Assembly P/N 46-1058 (46-1061 for M (DPDT) Model Option), Listed by Both Underwriter's Laboratories, Inc. (File No. E32961) & Canadian Standard Association (CSA) Testing Laboratories
- ATEX - SIRA Certified for Potentially Explosive Atmospheres. Models 6****Y, II 2 GD Ex d IIC, 08-ATEX-
- IECEx - SIRA Certified, SIR 10,0193X (Option Y)
NACE & NIST
- ISO 15156
- NACE MR-0175
Environmental Protection
- NEMA 4
- NEMA 7
- NEMA 9
- NEMA 13
- IP66
Service
- Oil-based
- Non-Oil-based
- Sour (Oil & Gas)
Adjustment Type
- Field Adjustable
Electrical Connectors
- 1/2” NPT Male
- M20 Male
Electrical Assembly
- 316 Stainless Steel
- Hermetic Seal
Electrical - Free Leads
- 18” (45 cm) Free Leads
- 18” (45 cm) Teflon Leadwire
Electrical Contacts
- Silver
- Gold
Applications
Applications
- Boilers & Burners
- Chemical & Petrochemical Plants
- Chemical Refining & Processing
- Control / Annunciator Panels
- De-greasers & Evaporators
- Filtration
- Fluid Management
- Food Processing
- Ground Support Equipment
- Hydraulic & Lubrication Systems
- Heating & Air Conditioning
- Manufacturing Process
- Marine Equipment
- Monitor & Control
- Offshore Oil Rigs & Platforms
- Oil & Gas
- Pipelines
- Power Generation
- Power Plants
- Pulp & Paper Mills
- Pump Jacks
- Pump Control
- Pumps, Compressors & Turbines
- Recovery Systems
- Refineries
- Relay Alarm Systems
- Reverse Osmosis Systems & Filters
- Safety - Alarm, Shutdown
- Safety Systems
- Specialized OEM Equipment
- Steel Mills
- Turbines
- Utilities
- Water Treatment
- Waste & Sewage Treatment Facilities
Applications of Pressure Switches
Pump Control
To maintain the pressure within specified limits by controlling the operation of pumps. For example, in water pumping systems, pressure switches ensure that the system maintains adequate water pressure.
Safety and Alarm Systems
To prevent overpressure conditions that could lead to equipment failure or safety hazards. Pressure switches can activate safety valves or alarms to alert personnel.
HVAC Systems
To regulate pressures within heating, ventilation, and air conditioning systems, ensuring efficient operation and preventing pressure extremes.
Compressed Air Systems
To control the air pressure in compressors and pneumatic systems, activating or deactivating the compressor as needed to maintain the desired pressure level.
Hydraulic Systems
To monitor and control the pressure in hydraulic circuits used in machinery and manufacturing processes.
Refrigeration Systems
To detect and control the pressure of refrigerants, helping to manage the cycling of refrigeration compressors.
Benefits
Benefits
Benefits of Bellville Disc Springs in Pressure Switches
Belleville disc springs, named after their inventor, Julien Belleville, are conical-shaped washers that provide a type of spring mechanism. When used in pressure switches, Belleville disc springs offer several advantages due to their unique properties and design making them suitable for a wide range of applications, from industrial machinery to safety equipment, and a preferred choice in applications where reliability, precision, and durability are critical.
High Load Capacity in a Compact Size
Belleville disc springs can support high loads with relatively small deflections compared to other spring types. This high load capacity in a compact form factor is advantageous in pressure switches where space may be limited.
Adjustable Operating Force
By using Belleville springs with application-specific properties, the operating force and deflection characteristics of the pressure switch can be finely tuned. This flexibility allows for precise control over the actuation point of the switch.
Long Service Life
The resilience and durability of Belleville disc springs contribute to a long service life, even in applications with high cycling rates. This durability ensures that pressure switches maintain their accuracy and reliability over time.
Wide Range of Operating Temperatures
Belleville disc springs perform reliably over a wide range of temperatures, making them suitable for applications exposed to extreme heat or cold.
Tolerance to Impurities
Belleville disc springs can tolerate some degree of impurities and deformation without significant loss of functionality. This characteristic is beneficial in environments where the pressure switch might be exposed to contaminants.
Shock and Vibration Resistance
The inherent design of Belleville disc springs provides excellent resistance to shock and vibration. This makes Belleville disc spring-based pressure switches highly reliable in dynamic and challenging environments, such as in compressors, chemical, petrochemical, and heavy machinery applications.
Minimal Maintenance
The simple and robust design of Belleville disc springs requires minimal maintenance. This reduces the overall cost of ownership and increases the reliability of the pressure switch.
Quick Response Time
Belleville disc springs can react quickly to changes in pressure, ensuring that the pressure switch responds promptly to operating conditions. This rapid response is critical in applications where safety or system performance is dependent on timely pressure regulation.
Predictable Behavior
The mechanical properties and behavior of Belleville disc springs under load are predictable, which facilitates trusted design, operation, and calibration of pressure switches.
CCS Dual-Snap 6900GZE Series
The Custom Control Sensors Dual-Snap hazardous locations 6900GZE series of mechanical gage pressure switch with a stainless steel port for corrosion-resistance are the most popular and renowned for being highly predictable, highly dependable, and long lasting, due to their time-tested quality design.
The 6900GZE series is UL/CSA explosion-proof, Class I, Groups A, B, C and D, and Class II Groups E, F and G certified. NEMA 4X and IP66 rating is ideal for wet conditions.
The 6900GZE series is designed with high vibration and shock resistance utilizing Dual Snap® disc spring technology ensuring high accuracy and repeatability. It comes with high over-pressure capabilities and a relatively compact size to conveniently mount on panels. It meets the demand for all applications commercial, industrial and otherwise.
Advantages of CCS Dual-Snap 6900GZE Series Pressure Switches
Automation and Control
The 6900GZE Series is the trusted choice for mission-critical processes because they're durable and reliable.
Rugged and Stable
- Impervious to harsh, critical environments
- Weather-proof, explosion-proof
- Shock and vibration-resistant up to 20 G's
Highly Accurate & Repeatable
- Unaffected by pump ripple and surges
- Non-drifting set points and a fixed deadband
- Precision control
Safety
Dual-Snap® pressure switches play a crucial role in helping prevent pressure-related incidents by helping maintain system pressures within prescribed system limits.
Cost-Effectiveness
CCS 6900GZE Series switches provide a very low total-cost-of-ownership with their long service life, robust and reliable operation which helps significantly reduce operational and maintenance costs.
Versatility
Available in various pressure ranges which are able to handle a wide range of applications.
Telematic Controls, Your Stocking Distributor of CCS Dual-Snap 6900GZE Pressure Switches
In Stock & Available for Immediate Delivery
Telematic Controls stocks 6900GZE pressure switches in Calgary, Alberta, Canada, and we ship daily to all areas of Canada including:
- Alberta
- British Columbia, BC
- Manitoba
- New Brunswick
- Newfoundland and Labrador
- Nova Scotia
- Ontario
- Prince Edward Island, PEI
- Quebec, PQ
- Saskatchewan
- Yukon
- Nunavut
- Northwest Territories, NWT
On-Demand Inventory
Occasionally you may find yourself in a challenging position where you need product fast; at Telematic Controls we understand our customers' needs can be on the spur-of-the-moment, that's why we maintain a large inventory of the following CCS Dual Snap 6900GZE models:
- 6900GZE12
- 6900GZE14
- 6900GZE16
- 6900GZE18
- 6900GZE20
- 6900GZE22
Documentation
Documentation
Certifications & Approvals
- Certifications & Approvals - CCS Approval Matrix pdf 34 KB
- Certifications & Approvals - CCS ATEX 6900, 674, 611 May 2011 pdf 153 KB
- Certifications & Approvals - CCS CE Certificate of Declaration pdf 225 KB
- Certifications & Approvals - CCS CRN Approval - Alberta pdf 126 KB
- Certifications & Approvals - CCS CRN Approval - BC pdf 67 KB
- Certifications & Approvals - CCS CRN Approval - Manitoba pdf 79 KB
- Certifications & Approvals - CCS CRN Approval - Saskatchewan pdf 263 KB
- Certifications & Approvals - CCS CSA Certification Record - Hazardous pdf 32 KB
- Certifications & Approvals - CCS Declaration of Conformity pdf 98 KB
- Certifications & Approvals - CCS EMC Directive pdf 30 KB
- Certifications & Approvals - CCS IECEx Certificate of Conformity pdf 1.3 MB
- Certifications & Approvals - CCS LVD - Low Voltage Directive pdf 98 KB
- Certifications & Approvals - CCS NACE Declaration 2013 pdf 114 KB
- Certifications & Approvals - CCS PED 2011 pdf 94 KB
- Certifications & Approvals - CCS RoHS/REACH 2012 pdf 278 KB
