Thermocouples for Flue Gas Temperature Measurements - TC81

Brand: WIKA Alexander Wiegand SE & Co. KG
Request Information

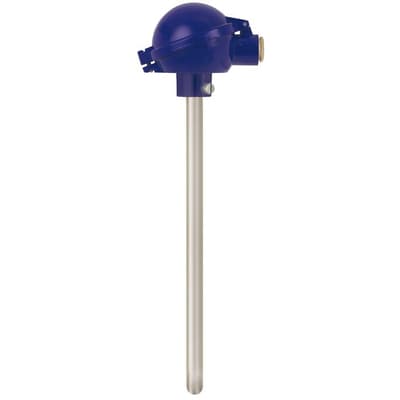

These straight thermocouples consist of a form B connection head, a measuring insert in accordance with DIN 43735 and a model TW81 protection tube. In addition to DIN form A or C protection tubes, customer-specific versions are possible. Possible process connections are stop flange or threaded bushing - the latter can realise a gas-tight connection.
Features
  • Application ranges up to 1,200 °C (2,192 °F).
  • Thermowell made of heat resistant steel.
  • Measuring insert replaceable.
  • Gastight process connection.
These straight thermocouples consist of a form B connection head, a measuring insert in accordance with DIN 43735 and a model TW81 protection tube. In addition to DIN form A or C protection tubes, customer-specific versions are possible. Possible process connections are stop flange or threaded bushing - the latter can realise a gas-tight connection.
Features
  • Application ranges up to 1,200 °C (2,192 °F).
  • Thermowell made of heat resistant steel.
  • Measuring insert replaceable.
  • Gastight process connection.
Close

Specifications

Brand

Certifications & Approvals

  • CE
  • SIL 2
  • NAMUR NE24
  • Uzstandard
  • UkrSEPRO
  • BelGIM
  • KazInMetr
  • GOST
  • DNOP - MakNII
  • PESO
  • KOSHA
  • NEPSI
  • IECEx
  • INMETRO
  • EAC
  • MTSCHS

Environmental Protection

  • ip65
  • IP53

Connection Head Material

  • Aluminum

Protection Tube Material

  • Stainless Steel 1.4571, 1.4841, 1.4762
  • Steel 1.0305

Sensor Type

  • Types K, J, N (Single or dual thermocouple)

Sensor Range

  • Up to 1,200° C (2,192° F)
Close

Applications

  • Blast furnaces, hot blast stoves
  • Annealing and heat treatment processes
  • Waste and hazardous waste incineration
  • Large heating systems, heat generation
