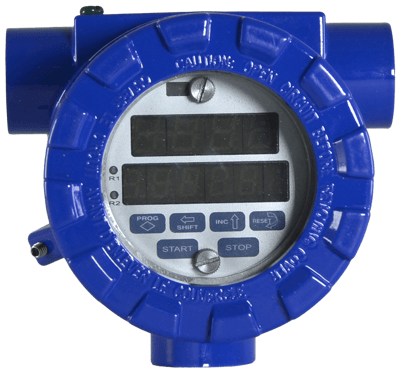

Model 8080FR Flow Indicator

Brand: International Metal Engineering (IME)
Request Information
IME Model 8080FR is a digital Flow Indicator that accepts a 4-20mA signal or pulse from a flow meter and displays the flow rate and the totalized flow. 2 independent alarms can be assigned to either the flow rate or the totalized flow, making the unit ideal for batch control.
IME Model 8080FR is a digital Flow Indicator that accepts a 4-20mA signal or pulse from a flow meter and displays the flow rate and the totalized flow. 2 independent alarms can be assigned to either the flow rate or the totalized flow, making the unit ideal for batch control.
Close

Specifications

Brand

Approvals & Certifications

  • ATEX II 2 GD, Ex d IIC T6 Gb, Ex Tb IIIC T85° C Db
  • CSA Class I, Div. 1, Groups B, C, D, Class 2/3, Div. 1, Groups E, F, G
  • IECEx

Environmental Protection

  • IP68
  • NEMA 4X
  • NEMA T6

NPT Connection

  • 1/2” NPT Female
  • 3/4” NPT Female
