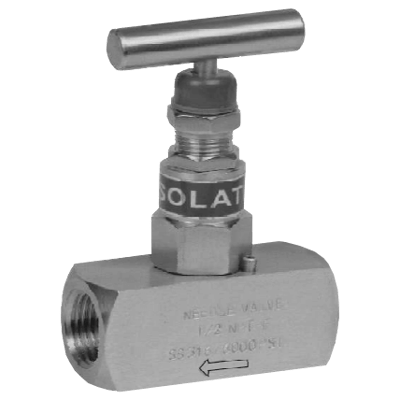

101NV/102NV/103NV Barstock Needle Valve

Brand: International Metal Engineering (IME)
The Model 101NV / 102NV / 103NV Needle Valves are designed for a wide variety of applications, requiring throttling or shut off, this is an extremely versatile valve with a wide selection of inlet and outlet configurations.
The Model 101NV / 102NV / 103NV Needle Valves are designed for a wide variety of applications, requiring throttling or shut off, this is an extremely versatile valve with a wide selection of inlet and outlet configurations.

Specifications

Enclosure Finish

  • Natural for Stainless Steel
  • Zinc-Plated for Carbon Steel

Enclosure, Body Material

  • 316 Stainless Steel
  • Carbon Steel
  • Hastelloy C
  • Monel 400

Gland Packing Material

  • Graphoil (Temperatures Above 180° C)
  • PTFE

NPT Inlet

  • 1/2” NPT Female
  • 1/4” NPT Female
  • 3/8” NPT Female

NPT Outlet

  • 1/2” NPT Female
  • 1/4” NPT Female
  • 3/8” NPT Female

Packing Material

  • Grafoil
  • Teflon

Pressure Range

  • psi: 6,000 (kPa: 41,340, bar: 414)

Proof Pressure

  • Test Pressure - psi: 580.2 (kPa: 4,000, bar: 40) at 25° C (77° F) Room Temperature for Pneumatic (Seat)
  • Test Pressure - psi: 6,019 (kPa: 41,500, bar: 415) at 25° C (77° F) Room Temperature for Hydrostatic (Seat)
  • Test Pressure - psi: 8,992 (kPa: 62,000, bar: 620) at 25° C (77° F) Room Temperature for Hydrostatic (Body)
