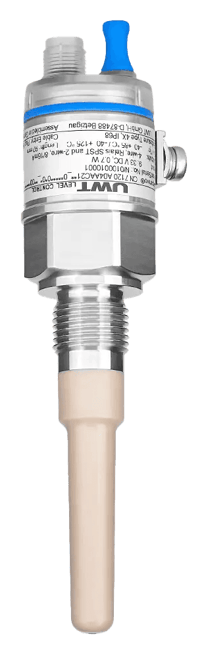

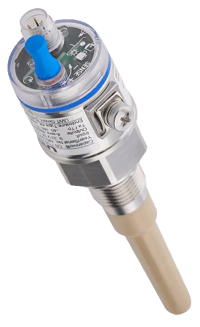

Capanivo - CN 7120 - Stainless Steel Capacitive Sensor

Brand: UWT GmbH
Request Information
Application Area

The capacitive level limit switch Capanivo® CN 7120 is used as a full, demand or empty detector as well as for leakage detection in all liquid applications.

Due to the compact design with 1/2" process connection the sensor is perfectly suited for use in small vessels and pipes.

In addition, the sensor, which has been developed in accordance with EHEDG guidelines, meets increased hygiene requirements.

With the IO-Link technology on board, digital data collected by the sensor can be transferred quickly and easily.

Moreover the sensitivity can be adjusted directly at the sensor via a potentiometer.
Features
  • Easy integration in existing processes with IO-Link technology
  • "Tip Sensitivity" and "Active Shield Technology" ensure reliable measurement results even with sticky or foaming media
  • Suitable for CIP/SIP-processes with temperatures up to 150°C
Application Area

The capacitive level limit switch Capanivo® CN 7120 is used as a full, demand or empty detector as well as for leakage detection in all liquid applications.

Due to the compact design with 1/2" process connection the sensor is perfectly suited for use in small vessels and pipes.

In addition, the sensor, which has been developed in accordance with EHEDG guidelines, meets increased hygiene requirements.

With the IO-Link technology on board, digital data collected by the sensor can be transferred quickly and easily.

Moreover the sensitivity can be adjusted directly at the sensor via a potentiometer.
Features
  • Easy integration in existing processes with IO-Link technology
  • "Tip Sensitivity" and "Active Shield Technology" ensure reliable measurement results even with sticky or foaming media
  • Suitable for CIP/SIP-processes with temperatures up to 150°C
Close
Close

Specifications

Brand

Measurement Pprinciple

  • Capacitive

Measuring Task

  • Point Level Measurement
  • Interface Level Measurement

Version

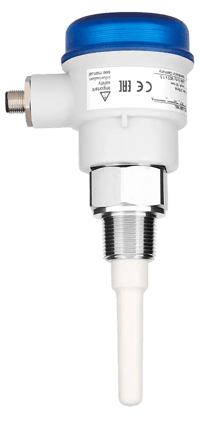

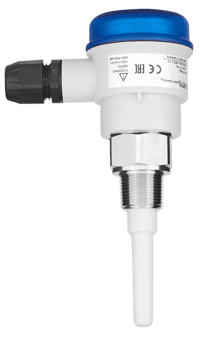

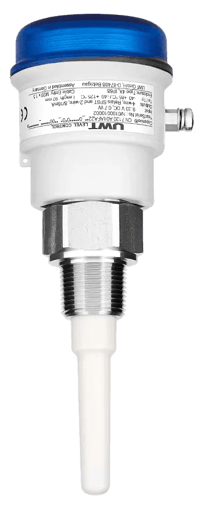

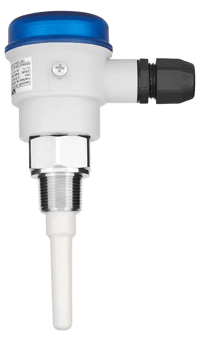

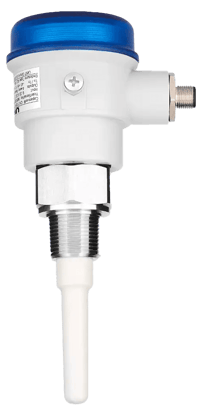

  • Housing Ø 65 mm / 35 mm

Medium

  • Liquids
  • Solids

Mounting Position

  • Horizontal
  • Angled
  • Out of Vessel
  • Top
  • In Pipes
  • In a Bypass
  • In a Standpipe

Ambient Temperature

  • -40°C … +85°C (-40 … +185°F)

Process Temperature

  • -40°C … +125°C (-40°F … +257°F)
  • CIP/SIP up to 150°C (302°F)

Process Pressure

  • -1 bar … +25 bar (-14.5 psi … +363 psi)

Minimum Sensitivity

  • DK ≥ 1.5

Housing Type

  • Plastics (PBT/PC)
  • Stainless Steel 1.4404 (316L)

Housing Material

  • Stainless Steel 1.4404 (316L)
  • Plastics (PC)

Housing Protection Rating

  • IP68, Type 4X

Threaded Connection

  • ≥ G ½"
  • ≥ NPT ¾"

Flange Connection

  • ≥ 1" / ≥ DN25

Hygienic Fittings

  • ≥ Triclamp 1"

Wetted Materials

  • PPS
  • PVDF
  • Stainless Steel 1.4404 (316L)
  • FKM
  • FFKM
  • PEEK

Mechanical Load

  • Probe: 400 N

Minimum Immersion Length

  • 92 mm (3.6")

Maximum Immersion Length

  • 92 mm (3.6")

Power Supply

  • 9...33 VDC

Signal Output

  • Relay
  • Transistor
  • 8/16 mA
  • 4…20 mA
  • IO-Link

Approvals

  • CE, ATEX, IEC-Ex, INMETRO, TR-CU, General purpose, FM, CSA, KC, CCC, UKCA

Explosion Protection

  • Intrinsic Safe (Ex i)

Hygienic / Pharma

  • EG 1935/2004
  • FDA
  • EHEDG (Type EL)

Overfill Protection

  • WHG
  • VLAREM

User Interface

  • Potentiometer
  • PACTware (DTM)
  • IODD
  • IO-Link Master

Optical Indicator

  • LED

Adjustment Possibility

  • Adjustable Sensitivity
  • Adjustable Output Delay
  • Switchable Logic (Fail Safe High - Fail Safe Low)
  • Adjustable Switching Point
  • Adjustable Hysteresis
